Genetic characterization of ØVC8 lytic phage for Vibrio cholerae O1
Virology Journal volume 13, Article number: 47 (2016)
Epidemics and pandemics of cholera, a diarrheal disease, are attributed to Vibrio cholerae serogroups O1 and O139. In recent years, specific lytic phages of V. cholerae have been proposed to be important factors in the cyclic occurrence of cholera in endemic areas. However, the role and potential participation of lytic phages during long interepidemic periods of cholera in non-endemic regions have not yet been described. The purpose of this study was to isolate and characterize specific lytic phages of V. cholerae O1 strains.
Sixteen phages were isolated from wastewater samples collected at the Endhó Dam in Hidalgo State, Mexico, concentrated with PEG/NaCl, and purified by density gradient. The lytic activity of the purified phages was tested using different V. cholerae O1 and O139 strains. Phage morphology was visualized by transmission electron microscopy (TEM), and phage genome sequencing was performed using the Genome Analyzer IIx System. Genome assembly and bioinformatics analysis were performed using a set of high-throughput programs. Phage structural proteins were analyzed by mass spectrometry.
Sixteen phages with lytic and lysogenic activity were isolated; only phage ØVC8 showed specific lytic activity against V. cholerae O1 strains. TEM images of ØVC8 revealed a phage with a short tail and an isometric head. The ØVC8 genome comprises linear double-stranded DNA of 39,422 bp with 50.8 % G + C. Of the 48 annotated ORFs, 16 exhibit homology with sequences of known function and several conserved domains. Bioinformatics analysis showed multiple conserved domains, including an Ig domain, suggesting that ØVC8 might adhere to different mucus substrates such as the human intestinal epithelium. The results suggest that ØVC8 genome utilize the “single-stranded cohesive ends” packaging strategy of the lambda-like group. The two structural proteins sequenced and analyzed are proteins of known function.
ØVC8 is a lytic phage with specific activity against V. cholerae O1 strains and is grouped as a member of the VP2-like phage subfamily. The encoding of an Ig domain by ØVC8 makes this phage a good candidate for use in phage therapy and an alternative tool for monitoring V. cholerae populations.
Cholera is a clinical-epidemiologic syndrome caused by ingestion of water contaminated with Vibrio cholera serogroups O1 and O139. This disease is considered an important public health problem worldwide, though it mainly affects developing countries and alters the economies of these regions . From 1991 to 2001, the seventh pandemic of cholera affected Latin America, including Mexico. In October 2010, a cholera epidemic in Haiti resulted in over 180,000 cases in three months and spread rapidly to other countries, such as the Dominican Republic and Cuba . V. cholerae has the ability to survive in aquatic habitats of different characteristics, including wastewater. During the process of adaptation to conditions of extreme pH, salinity, temperature, and nutrient insufficiency as well as predation by heterotrophic protists and bacteriophages, the expression of different genes is activated. A viable but non-culturable state or biofilm is then induced, which contributes to adaptation by the bacterium for survival in different environmental conditions . Bacteriophages or phages (bacterial viruses) are mobile genetic elements that participate in horizontal gene transfer in bacteria, thereby contributing to their environmental adaptation and evolution. In addition, several bacterial virulence genes are present in phage genomes, and the mobile nature of phages can promote the emergence of new epidemic strains.
One of the main virulence factors of V. cholerae is cholera toxin (CT), which is encoded by CTXØ, a lysogenic filamentous phage that has contributed to bacterial evolution through lysogenic conversion and genomic rearrangement . The ctxAB genes present in the CTXØ genome of toxigenic V. cholerae favor the conversion of nonpathogenic strains into toxigenic strains via CTXØ acquisition. The first vibrio phages were described in 1926 by d’Herelle, and in the 1950s, several distinct types of V. cholerae phages were described . The use of bacteriophages as a tool for strain differentiation has contributed significantly to our understanding of cholera epidemiology . In addition, the first phage-typing scheme for V. cholerae O1 was employed to study the spread of V. cholerae strains of the El Tor biotype . Although, this phage-typing scheme has been used routinely for the classification of V. cholerae O1 strains due to its limitations, new phage-typing schemes for O139 strain classification have been developed . Since 2007, more than 200 vibrio phages have been described; however, at present, only 17 genomes of V. cholerae phages have been sequenced and annotated in the GenBank database.
In recent years, lytic phages have been proposed as important factors modulating populations of V. cholerae serogroups O1 and O139 in the aquatic environment, thus affecting the seasonality and duration of cholera epidemics in endemic areas . In Bangladesh, which is considered an endemic cholera area, the prevalence of several predatory phages (JSF1 to JSF6) of V. cholerae has been partially characterized. Fluctuations in and the presence of the most prevalent phage types have been correlated with temporal changes in the cyclical appearance of cholera, acting as factors that modulate the epidemic cycle in the short period as well as outbreak severity . In Mexico, conditions amenable to the survival of V. cholerae Non-O1/Non-O139 in aquatic reservoirs have been reported for several years . However, the role of diverse phages in non-endemic cholera areas as elements that participate in the survival and occurrence of the bacterium during long interepidemic periods is not completely understood. In 2010, sporadic cholera cases were identified in Sinaloa State, México, and in 2013, an outbreak of 187 cases of cholera in Hidalgo State, México, was reported by the Secretaria de Salud de México (www.epidemiologia.salud.gob.mx/dgae/boletin/intd_boletin.html; www.sinave.gob.mx/). Although the phages involved in the epidemiology of cholera in Mexico have not yet been characterized, predation of V. cholerae O1 by phages can be considered a key factor in understanding the long interepidemic periods of cholera in these regions. The main goal of this study was to isolate and characterize V. cholerae phages from wastewater of the Endo Dam in Hidalgo State, México, and to assess their lytic activity against V. cholerae O1 strains.
Samples were collected at the Endhó Dam in Hidalgo State, located 80 km north of Mexico City, Mexico. This ~ 1,260-hectare dam has a capacity of approximately 198 million m3 and is the main reservoir of wastewater and rainwater from the metropolitan area of Mexico City and Hidalgo State .
Isolation of phages
Four water samples of 200 ml each were collected from different points at the Endhó Dam, transported in glass bottles at room temperature, and processed on the same day. Briefly, 50 ml of each sample was centrifuged at 16,000 × g (RC5 rotor, Thermo Scientific, Pittsburgh, PA, USA), and the supernatant was filtered through a 0.22-μm membrane (PVDF; Millipore, Bedford, MA, USA) to eliminate bacteria and/or diverse residues. The phages in the supernatants were isolated using V. cholerae O1 and O139 as receptor strains in double-layer plaque assays with soft agar (10 g/l tryptone, 10 g/l NaCl, and 7 g/l agar) as described by Kropinski et al.  (Table 1). In brief, 1 ml of each sample and 100 μl of the receptor strain in exponential growth phase were mixed, and 4 ml of melted soft agar was added. The mixture was poured onto Petri dishes with nutrient agar (15 g/l agar) and incubated at 37 °C for 18 h.
Purification of phages
Lytic plaques were selected with a sterile Pasteur pipette and incubated in 50 ml of Luria-Bertani (LB) broth (LB was supplemented with 10 mM CaCl2 and inoculated with ~4 × 108 colony-forming units (CFU/ml) of each receptor strain) at 37 °C for 18 h. The cellular debris was eliminated by centrifuging the samples twice at 9,000 × g/10 min/4 °C (5415C, Eppendorf, Hamburg, Germany). The supernatants containing the phages were filtered through a 0.22-μm membrane (Millipore PVDF, Bedford, MA, USA). The phages were concentrated adding 5 % polyethylene glycol 8000 (PEG) and 0.25 M NaCl at 4 °C overnight  and recovered by centrifugation at 16,000 × g (RC5 rotor, Thermo Scientific, Pittsburgh, PA, USA) for 20 min at 4 °C. The pellets were dissolved in 5 ml of SM buffer (50 mM Tris–HCl [pH 7], 100 mM NaCl and 50 mM MgSO4), loaded onto a cesium chloride gradient (density, 1.3 to 1.6 g/ml), and centrifuged (41Ti rotor, Beckman, Brea, CA, USA) at 100,000 × g for 18 h at 4 °C to obtain relatively pure phages. The recovered phages were dialyzed three times against dialysis buffers “A” (3 M NaCl and 0.1 M Tris–HCl, pH 7.4) and “B” (0.3 M NaCl and 0.1 M Tris–HCl, pH 7.4) using a membrane with a molecular weight cut-off of 12,000 to 14,000 (Spectra/Pore, Spectrum Laboratories, Rancho Dominguez, CA, USA).
Isolation of V. cholerae
The four water samples previously collected from the Endhó Dam were also used for isolation of V. cholerae strains using an enrichment technique . Briefly, 10 ml of each water sample was inoculated into 50 ml of alkaline peptone water and incubated at 37 °C for 6 h. The bacteria-enriched samples were cultured on thiosulfate-citrate-bile salts-sucrose agar (TCBS; Becton-Dickinson, Sparks, MD, USA) at 37 °C for 18 h. Yellow colonies produced by V. cholerae on TCBS agar were identified using the GNI-Plus card (bioMérieux, Marcy l’Etoile, Rhône, France) and an automated Vitek system. Strains identified as V. cholerae were serotyped with anti-O1 and anti-O139 rabbit sera (Laboratorio de Patógenos Entéricos, UNAM, México).
Phage host range
The lytic activity of the purified phages was analyzed by a dot plaque assay employing the V. cholerae O1, V. cholerae O139, V. cholerae non-O1, V. cholerae non-O139, V. alginolyticus, V. parahaemolyticus, V. metschnikovii, Aeromonas veronii, Escherichia coli K-12 HB101, and V. cholerae isolates identified in this study (Table 1 and Additional file 1: Table S1). To assess phage activity, these strains were cultured on LB agar until log phase and incubated with 10 μl of a phage suspension (108 plaque-forming units [PFU]/ml) at 37 °C for 18 h . The formation of turbid and/or clear plaques over the bacterial lawn was visualized with the naked eye and employed as the criterion for the selection of specific phages.
Visualization of the ØVC8 phage by transmission electron microscopy (TEM)
Two microliters of a purified phage ØVC8 suspension (1 × 108 PFU/ml) was placed on a Formvar-carbon-coated grid (EMS, Hatfield, PA, USA) for 2 min followed by negative staining with 6 μl of 2 % uranyl acetate for 2 min. The morphology of the purified ØVC8 phage was examined under a JEM 1200 EXII transmission electron microscope (JEOL, Tokyo, Japan).
Isolation of phage DNA
Phage ØVC8 DNA was extracted as follows: a 500-μl aliquot of phage ØVC8 suspension (1 × 108/ml PFU) was treated with 100 U of DNase I (Invitrogen, Carlsbad, CA, USA), 2 μl of proteinase K (20 mg/ml) (Vivantis, Oceanside, CA, USA), and 50 μl of SDS (10 %) at 56 °C for 1 h. The purified DNA was treated with phenol-chloroform (1:1 ratio), precipitated with cold absolute ethanol, and resuspended in DNase-free water.
Genome sequencing and assembly of phage ØVC8
Total phage ØVC8 DNA was sequenced using Genome Analyzer IIx System (Illumina, San Diego, CA, USA) at the Massive Sequencing University Unit (UUSM, by its initials in Spanish) at the Institute of Biotechnology of UNAM (Cuernavaca, Morelos, Mexico). De novo assembly of ØVC8 was performed at Winter Genomics Company (www.wintergenomics.com) using the Velvet, Abyss, and SOAP programs. A consensus sequence from the results obtained with three programs was generated using the Minimus program .
Bioinformatics analysis of the ØVC8 genome
The consensus sequence of the ØVC8 genome was analyzed as described by Henn et al. . To identify potential coding sequences, the programs BLAST-X and PFAM/TIGR were used to compare the ØVC8 genome sequence against the sequences of proteins reported in the databases. Open reading frames (ORFs) identified using the Glimmer3, Meta GeneAnnotator, GeneMarkS, ZCURVE_V, and EasyGene gene prediction programs were grouped as a single locus. tRNAs and rRNAs were predicted using the tRNAscan-SE, Rfam, and ARNmmer programs. The pI/MW program was used to calculate the molecular weights of the identified proteins . The transcriptional promoters and terminators were predicted using the PromoterHunter and WebGeSTer programs, respectively [20, 21].
Phylogenetic analysis of ØVC8
A phylogenetic analysis of ØVC8 was performed using the translated DNA sequence of ORF3 (terminase large subunit), which was aligned with 53 homologous sequences from phages of the Podovirus family using the ClustalW2 program . Additionally, the phylogenetic tree was constructed with the Mega ver. 6.0 program using the neighbor-joining method, which employs a gamma distribution (gamma = 2) and 1,000 bootstrap replicates with Poisson distance correction .
Accession number of the nucleotide sequence
The genome sequence and the genetic annotation of genome ØVC8 were deposited in the GenBank database under accession number JF712866.
Structural proteins of phage ØVC8
Potential proteins in the phage ØVC8 capsid were identified according to the procedure described by Boulanger et al. . The phage was precipitated with PEG/NaCl (as described above), mixed with Laemmli solution (65.8 mM Tris–HCl, [pH 6.8], 2.1 % SDS, 26.3 % [w/v] glycerol, 0.01 % bromophenol blue and 100 mM β-mercaptoethanol) and heated to 100 °C for 5 min. Proteins were separated by 10 % SDS-PAGE (polyacrylamide-sodium dodecyl sulfate gel electrophoresis) and visualized using Coomassie blue. The identified proteins were processed using a QTRAP 3200 mass spectrometer (Applied Biosystems/MDS Sciex, ON, Canada) at the Biochemistry Department of the Faculty of Medicine-UNAM.
Isolation of bacteria and phages
Thirteen isolates identified in wastewater samples from the Endhó Dam were characterized as V. cholerae non-O1/O139 (6 isolates), V. alginolyticus (4 isolates), and A. veronii (3 isolates) (Additional file 1: Table S1). In addition, 16 phages were isolated from these wastewater samples.
Lytic activity and host specificity of the identified phages
The sixteen phages identified were tested using 53 gram-negative bacteria; although 58.49 % (31/53) of these bacteria were not infected by any phage (Table 1 and Additional file 1: Table S1). On the other hand, all the phages showed lytic and lysogenic activity when tested against 22 V. cholerae O1/O139 strains. In this assay, 75 % (12/16) of the phages produced clear and/or opaque plaques in both serotypes (V. cholerae O1 and O139), though four of the phages did not infect V. cholerae O139 (Table 1). Interestingly, only the phage designated as ØVC8 showed lytic activity against thirteen strains of V. cholerae O1, producing clear plaques ~1 mm in diameter without halos.
Morphology of the ØVC8 phage
The ØVC8 phage was stained with 2 % uranyl acetate and analyzed by TEM. Morphological analysis showed an isometric icosahedral capsid approximately 62 nm in diameter and a tail 16 nm in length (Fig. 1a and b). These characteristics are similar to the phages described in the Podoviridae family of the order Caudovirales.
Genome sequencing of ØVC8
The genomic sequence of ØVC8 was assembled into a single contig with a median coverage of 14,324×, composed of a double-stranded DNA molecule 39,422 bp in length with 50.8 % G + C content. Bioinformatics analysis of the ØVC8 genome sequence revealed 48 putative ORFs; of these, 30 % (14/48) can be assigned functions according to their homology to known sequences of other phages, 2.08 % (1/48) do not show similarity with any previously reported sequences, and 70.83 % (34/48) correspond to hypothetical proteins described in other phages (Table 2). The 48 ORFs are distributed on both DNA strands: one strand contains 22 ORFs related to phage packaging functions and to mainly structural proteins, and the other 26 ORFs on the complementary strand are associated with metabolic, replication and unknown functions. tRNAs and rRNAs were not identified.
Functional organization of the ØVC8 genome
Hypothetical regulatory sequences were found in the intergenic regions of the ØVC8 genome: 15 correspond to promoter sequences (Table 3), and eight are associated with Rho-independent terminators (Fig. 2). Considering the specific regulatory sequence positions and ORF functions, the ØVC8 genome is organized into functional modules of packaging, head-tail morphogenesis, metabolism, and replication (Fig. 3). Additionally, two possible modules (ORFs 48 to 45 and 44 to 35) described as hypothetical proteins without assigned functions are located upstream of the replication module. Furthermore, five repeat sequences are present in the genome: four of these are inverted sequences of 20 bp, three are located in intergenic regions of both replication and metabolism modules, and the last is located in ORF39 (hypothetical protein). Additionally, a tandem direct repeats sequence of 54 bp was also found in the non-coding region 222 bp upstream of ORF48.
Seven ORFs were identified in this module, four of which are annotated as hypothetical proteins with unknown functions. Functions for ORFs 2, 3, and 4 can be ascribed to the small terminase subunit, large terminase subunit, and head-to-tail connecting protein, respectively (Fig. 3). The functional characteristics of the three ORFs and closely related homologs are described in Table 2. Characterization of the large terminase subunit as a protein widely conserved in the Podoviridae family is important for determining the close phylogenetic relationship of ØVC8 with V. cholerae phages VP2 and VP5 (Fig. 4).
Head-tail morphogenesis module
Fourteen ORFs are located downstream of the packaging module, seven (ORFs 9 to 13, 16, and 18) of which are described as hypothetical proteins. In addition, five ORFs (ORFs 14, 15, 19, 20, and 21) were identified using BLAST-X, and two (ORFs 8 and 17) were identified by mass spectrometry. The hypothetical proteins of these ORFs show homology to structural proteins of the VP2 phage (Table 2). ORF14 codes for a 74.1-kDa protein similar to the tail protein of VP5 (identity = 90 %) and contains conserved traits of specific domains of the immunoglobulin (Ig) superfamily. ORF21 shows 96 % identity with the capsid protein of VP2. Pfam analysis of the ORF21 sequence reveals a BNR/Asp-box repeat conserved domain of the bacterial neuraminidase or sialidase family.
Seven ORFs (34 to 28) located at the 3′ end of the complementary strand encode proteins involved in ØVC8 phage replication. ORFs 34, 31, 29 and 28 are annotated as a helicase, single-strand DNA-binding protein (SSBP), DNA polymerase I, and integrase functions, respectively (Fig. 3 and Table 2). ORF34 exhibits an amino-terminal conserved region with an SNF-2 domain that corresponded to the helicase-like ATP-dependent family. ORF31, which is located downstream, shows 93 % identity with SSBPs of phage VP2. ORF29 codes for DNA polymerase I, which has also been described in T3 of Myoviridae, T5 of Siphoviridae, and T7 of Podoviridae. ORF28 encodes an integrase of VP2 and VP5 phages, with 99 and 56 % identity, respectively. A bifunctional-N-terminal primase/polymerase (N-Ter prim/pol) and a primase C-terminal-2 domain (PriCT-2) in ORF28 were also identified. ORFs 33, 32, and 30 are hypothetical proteins.
The ØVC8 metabolism module is composed of six ORFs (22 to 27 ORFs). The sequences of ORFs 25 and 27 are enzymes involved in the metabolic pathways of amino acid synthesis. ORF25 encodes an HD-3 conserved domain with an H-21x-HD motif that corresponds to a metal-dependent phosphohydrolase from the HD superfamily, and ORF27 encodes an adenosyl succinate synthetase. ORFs 22, 23, 24, and 26 are hypothetical proteins (Fig. 3).
Comparative genomics of ØVC8 with VP2 and VP5
The BLASTX alignment results for the ØVC8 genome revealed 86 and 85 % identity compared with the VP2 and VP5 genomes, respectively . Differences at the DNA sequence level include six regions of the ØVC8 genome compared with the VP2 genome and four regions compared with the VP5 genome. Consistently, the putative proteins of six ORFs localized in these regions of the ØVC8 genome display sequence similarities with different percentages of identity and positions compared to VP2 and VP5 phage proteins (Additional file 2: Figure S1). Interestingly, the putative protein of ORF30 is not present in the VP2 and VP5 genomes.
Phylogenetic analysis of the terminase large subunit
To investigate the possible role of the terminase subunit in the ØVC8 genome packaging process, bioinformatics analysis comparing the amino acid sequence of ORF3 with sequences of 88 phages of the order Caudovirales was performed. The phylogenetic tree grouped ØVC8 ORF3 into the same cluster with the terminases of VP2, VP5, CP-933 K, Fels-1, Gifsy-1, Gifsy-2, and Wo phages from the lambda-like group (Fig. 5).

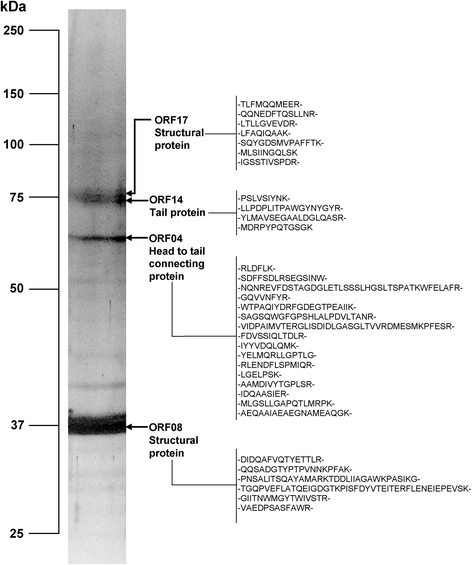

Structural proteins of ØVC8 phage were purified, analyzed, and compared with 48 ORFs of the ØVC8 phage genome (Table 2). Four main proteins (36.1, 61.7, 74.1, and 76.8 kDa) were identified by SDS-PAGE analysis and sequenced by mass spectrometry (Fig. 6). BLAST-P analysis of the amino-terminal sequences of the 61.7 and 74.1 kDa proteins showed matches to structural proteins of phages VP2 and VP5. In addition, 61.7 kDa protein peptides are homologous to specific peptides of head-to-tail (ORF4), and 74.1 kDa protein peptides are homologous to specific peptides of the tail protein (ORF14). In contrast, matches with hypothetical proteins of unknown functions were found for the 36.1- and 76.8-kDa proteins, corresponding to ORFs 8 and 17; these proteins have been described in the VP2 and VP5 phages.
Phages as biological entities are abundant and widely distributed in the world and have great relevance in the control of bacterial communities. Fluctuations in phage populations during the seasonal behavior of cholera and the surveillance of V. cholerae in the aquatic environment are important factors that have been associated with cholera outbreaks . In endemic cholera regions, V. cholerae phages have been detected in high frequency in different aquatic habitats, and these phages have been employed as strain markers for phage typing of V. cholerae O1 and O139 .
Thirteen bacterial isolates in wastewater samples collected from the Endhó Dam in Hidalgo State were identified as V. cholerae non-O1/O139, V. alginolyticus and A. veronii. Although toxigenic isolates of V. cholerae O1/O139 were not identified, the presence of non-O1/O139 V. cholerae strains is suggestive of the ability of these bacteria to survive for prolonged periods in sewage-polluted waters.
In endemic cholera areas, the presence of non-O1/O139 strains in the environment has been related to these bacteria serving as possible phage reservoirs with lytic activity against V. cholerae O1/O139 . An abundant number of phages in wastewater treatment systems have been described, though little information regarding their population dynamics and their interaction with the microbial community has been published . In the present work, only one phage, named ØVC8, showed lytic activity again V. cholerae O1 strains. V. cholerae predation by lytic phages has been proposed to be an important factor involved in the cyclical occurrence and severity of cholera outbreaks in endemic areas . Thus, the presence of ØVC8, a lytic phage of V. cholerae O1 strains, could be involved in the epidemiology of cholera in Mexico, possibly regulating the presence of V. cholerae O1 strains for long periods; however, further studies are required to confirm this possibility.
The morphological characteristics of ØVC8 phage visualized by TEM showed a structure similar to V. cholerae phages JSF3 and JSF6 of the Podoviridae family, two phages that have been associated with the cyclic appearance of cholera in Bangladesh (Fig. 1). Considering the morphological classification of JSF3 and JSF6 phages, ØVC8 could be included in group III of the V. cholerae phage C1 morphotype, which includes OXN-100P, 4996, I, and III [5–27].

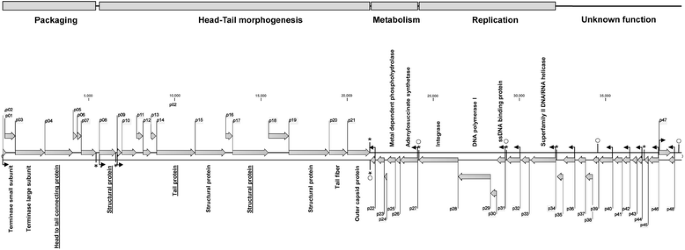

Sequencing of the ØVC8 genome revealed 48 putative ORFs distributed on both DNA strands and organized into packing, head-tail morphogenesis, metabolism, replication, and unknown function modules. ORFs 2 and 3 encode for proteins of the terminase family, which are implicated in translocation of the viral capsid DNA during the final stage of phage assembly. Terminases are the most conserved proteins among caudoviruses, and they have been identified in all podoviruses . Considering the presence of terminases as a potential marker of podoviruses, ORF3 of phage ØVC8 was analyzed by bioinformatics procedures. The results obtained allowed the identified terminases to be grouped in the same cluster with the terminases of phages VP2 and VP5 (Fig. 4). These data support that ØVC8 has a genomic organization that is similar to that of VP2 and VP5; therefore, ØVC8 could be included in the VP2-like subfamily proposed by Lavigne et al. .
During ØVC8 phage replication, a terminase protein is required for DNA packaging and for chromosomal end formation . ORF3 encodes a large terminase subunit that could participate in this process. Indeed, comparative analysis of the terminase protein coded by ORF3 suggests participation in the packing process via the “single-stranded cohesive ends” strategy, as has been described for lambda-like phages. Phages with these characteristics have a complementary sequence and generate protruding single strands called COS sites; these sites are highly conserved in the genome and are present in a region 1,000 bp upstream of the gene that encodes the small terminase subunit . The above findings led us to propose that the COS site of ØVC8 is located in a tandem sequence 299 bp upstream of the terminase small subunit (Fig. 3). The interaction of head-to-tail connecting proteins with one of the procapsid vertices of the mature phage promotes formation of an axial pore for DNA translocation in both directions . The presence of the head-to-tail connecting protein (ORF4) of ØVC8 suggests that this protein participates in this process during DNA packaging by translocating the chromosome into the procapsid and ejecting it during the infective stage of the phage. These results indicate that ORF4 is the portal protein of phage ØVC8.
In some podovirus phages such as P22 from Salmonella sp., tail proteins have been described as molecules with the ability to recognize specific receptors during the initial stages of host infection . In the head-tail morphogenesis module of ØVC8, ORF14 encodes a tail protein that could be involved in the recognition and infection of V. cholerae O1 strains. However, an Ig domain similar to that described for phage T4, which has been associated with functions of immune response and adhesion to eukaryotic cells, was also identified in ORF14 . This domain has been grouped into the classic Ig domain (I-Set), which is widely distributed among bacteria, as well as the fibronectin type 3 (FN3) and bacterial Ig-like domain (Big2) families. Bioinformatics analysis of ORF14 revealed that its Ig domain corresponds to the I-Set family . Recent studies have demonstrated that Ig-like domains are important in phage interaction with metazoan mucosal surfaces via specific adherence that might provide immunity independent of the host immune response . Thus, the Ig domain of ORF14 may be an important element in ØVC8 phage interaction with the human intestinal mucosa, which is associated with the lytic activity of the phage in preventing V. cholerae O1 colonization.
Although ORF20 codes for a tail fiber protein, the presence of fibers in the ØVC8 phage was not observed by TEM. The tail fiber protein described for phage T7 consists of elongated homo-trimers that are responsible for the reversible initial recognition of a cell . These structures are commonly composed of six fibers that are attached to the phage capsid, which hinders TEM analysis, and these fibers can be only visualized when host interaction occurs . In our study, ØVC8 phage fibers were not observed, suggesting the possibility of a situation similar to that described for T7. In contrast, ORF21 of ØVC8 was annotated as a capsid protein, which encodes a BNR/Asp-box domain that has been described in the neuraminidase or sialidase family from bacteria and phages . Proteins with sialidase activity are important for the degradation of bacterial polysaccharides; expression of these enzymes is an attractive feature for phage therapy . Indeed, the presence of the BNR/Asp-box domain in ORF21 enables ØVC8 to be considered as a possible strategy for the treatment of cholera.
DNA/RNA helicases are widely distributed proteins that are required for the ATP-dependent unwinding of double-stranded DNA, an essential step in replication, expression, recombination, and DNA repair. In the replication module of the ØVC8 genome, ORF34 encodes a DNA/RNA helicase of the SNF-2 family with a conserved domain in its amino-terminal region that is involved in chromatin structure remodeling . ORF31 codes for SSB, a protein that participates in replication, recombination and DNA repair processes . ORF29 encodes for a DNA polymerase I described in mitochondrial polymerase-g, prokaryotic DNA polymerase I, and diverse polymerases (T3, T5, and T7 phages) of the Pol A family . Therefore, the helicase of ORF34 identified in this study may participate in transcription and replication processes of the ØVC8 phage genome.
ORF28 exhibits sequence homology with integrases of V. cholerae phages VP2 and VP5. Integrases achieve viral genome integration into the host genome via site-specific recombination of DNA sequences of 30 to 40 bp, with the first located on the phage chromosome (attP) and the second on the bacterial chromosome (attB). These enzymes are classified into two major families based on their amino acid sequence homology and catalytic residues, either tyrosine or serine. However, bioinformatics analysis shows no tyrosine or serine residues in the sequence of ØVC8 integrase or the corresponding sequences of VP2 and VP5 phages. Suggesting that the sequence does not correspond to an integrase or is a non-functional protein. Conserved bifunctional-N-terminal primase/polymerase domains (N-Ter prim/pol) and other primase C-terminal-2 domains (PriCT-2) were identified in the ORF28 sequence of the ØVC8 genome. N-Ter prim/pol is a multifunctional enzymatic domain with ATPase, primase, DNA polymerase, and helicase activity . In contrast, the PriCT-2 domain belongs to the archaea-eukaryotic primase superfamily from the primase-polymerase clade (prim/pol-like) . N-Ter prim/pol and PriCT-2 are essential domains of multifunctional replication proteins of the phage replication machinery. Accordingly, we speculate that ORF28 has bifunctional DNA primase/polymerase activity involved in ØVC8 phage replication.
In the metabolism module of the ØVC8 genome, ORFs 25 and 27 encode for enzymes involved in metabolic pathways of amino acid synthesis; these proteins are auxiliary metabolic molecules that may provide additional support in host metabolism steps, allowing successful phage infection . HD-3, a conserved domain of ORF25, corresponds to proteins with a distinct combination of metal-chelating residues, nucleases and phosphodiesterase activities . These data suggest that ORF25 could participate in ØVC8 phage signaling and nucleotide metabolism. ORF27 encodes an adenylosuccinate synthetase that participates in purine biosynthesis by catalyzing the GTP-dependent conversion of inosine monophosphate to adenosine monophosphate . Notably, this enzyme is located at the same loci of VP2 (VP2p26) and VP5 (VP5_gp26) chromosomes, and the presence of this enzyme constitutes one of the main distinguishing characteristics of the proposed VP2-like subfamily .
Recent studies have shown that some phages can employ alternative pathways of the classical holin-endolysin lysis system by employing the host cell secretion machinery to deliver their endolysins . Our observations showed that ØVC8 is a virulent phage with lytic activity against several V. cholerae O1 strains; however, none of the identified genes of the ØVC8 genome appear to be involved in bacterial lysis. One possible explanation for the lytic activity of ØVC8 is that this phage uses a lysis pathway that differs from the classic system.
Comparative genome analysis of ØVC8, VP2, and VP5 showed similar genome sequences and genetic organization. The presence of an adenylosuccinate synthetase and the lack of a lysis cassette are unique traits of these three phages. However, the genome of ØVC8 shows five insertion/deletions that have not been identified in the VP2 and VP5 genomes; these insertion/deletions are located mainly in the unknown function region and in the replication module (Additional file 2: Figure S1). The effect of these insertion/deletions on the phenotypes of VP2 and VP5 remain unknown, largely because of a lack of data regarding the characteristics of these phages.
Mass spectrometric analysis of the structural proteins of phage ØVC8 showed that these proteins are distributed among the packing and structural modules (ORFs 17, 14, 8, and 4), indicating that ØVC8 requires these four structural proteins for prophage assembly and potentially for initial host recognition. Additionally, ORF8, which encodes a protein of 36.1 kDa, was identified as one of the most abundant structural proteins, suggesting that this is a protein with a high copy number that is presumably the major capsid protein.
The obtained results allow us to propose that ØVC8, which was identified in a non-endemic cholera area, is a new specific lytic phage for toxigenic V. cholerae O1 strains. Some of its features suggest that this phage could be considered a member of the VP2-like phage subfamily. Additionally, the presence of an Ig domain could confer to this phage the ability to adhere to different mucus substrates (including the human intestine), a situation that may influence the epidemiology of cholera. Certain features of phage ØVC8 may be employed as alternative tools for monitoring environmental populations of V. cholerae strains and suggest it as a potential candidate for phage therapy.
Glass RI, Black R. The epidemiology of cholera. In: Barua D, Greenough WB, editors. Cholera. New York: Plenum and Publishing House; 1992. p. 129–54.
Andrews JR, Basu S. Transmission dynamics and control of cholera in Haiti: an epidemic model. Lancet. 2011;377:1248–55. doi:10.1016/S0140-6736(11)60273-0.
Colwell RR. Viable but nonculturable bacteria: a survival strategy. J Infect Chemother. 2000;6:121–5. doi:10.1007/s101560000026.
Waldor MK, Mekalanos JJ. Lysogenic conversion by a filamentous phage encoding cholera toxin. Science. 1996;272:1910–4. doi:10.1126/science.272.5270.1910.
Ackermann HW, Kasatiya SS, Kawata T, Koga T, Lee JV, Mbiguino A, et al. Classification of Vibrio bacteriophages. Intervirology. 1984;22:61–71. doi:10.1159/000149535.
Faruque SM. Role of phages in the epidemiology of cholera. Curr Top Microbiol Immunol. 2014;379:165–80. doi:10.1007/82_2013_358.
Mukerjee S, Phil D. Bacteriophage typing of cholera. Bull World Health Organ. 1963;28:337–45.
Chakrabarti AK, Ghosh AN, Nair GB, Niyogi SK, Bhattacharya SK, Sarkar BL. Development and evaluation of a phage typing scheme for Vibrio cholerae O139. J Clin Microbiol. 2000;38:44–9.
Faruque SM, Naser IB, Islam MJ, Faruque AS, Ghosh AN, Nair GB, et al. Seasonal epidemics of cholera inversely correlate with the prevalence of environmental cholera phages. Proc Natl Acad Sci U S A. 2005;102:1702–7. doi:10.1073/pnas.0408992102.
Jensen MA, Faruque SM, Mekalanos JJ, Levin BR. Modeling the role of bacteriophage in the control of cholera outbreaks. Proc Natl Acad Sci U S A. 2006;103:4652–7. doi:10.1073/pnas.0600166103.
Isaac-Márquez AP, Lezama-Dávila CM, Eslava-Campos C, Navarro-Ocaña A, Cravioto-Quintana A. Serotypes of Vibrio cholerae non-O1 isolated from water supplies for human consumption in Campeche, México and their antibiotic susceptibility pattern. Mem Inst Oswaldo Cruz. 1998;93:17–22. doi:10.1590/S0074-02761998000100004.
Siebe C, Cifuentes E. Environmental impact of wastewater irrigation in central Mexico: an overview. Int J Environ Health Res. 1995;5:161–73. doi:10.1080/09603129509356845.
Kropinski AM, Mazzocco A, Waddell TE, Lingohr E, Johnson RP. Enumeration of bacteriophages by double agar overlay plaque assay. In: Clokie MRJ, Kropinski AM, editors. Bacteriophages, methods and protocols. New York: Humana Press; 2009. p. 69–76.
Yamamoto KR, Alberts BM, Benzinger R, Lawhorne L, Treiber G. Rapid bacteriophage sedimentation in the presence of polyethylene glycol and its application to large-scale virus purification. Virol. 1970;40:734–44. doi:10.1016/0042-6822(70)90218-7.
DeWitt WE, Gangarosa EJ, Huq I, Zarifi A. Holding media for the transport of Vibrio cholerae from field to laboratory. Am J Trop Med Hyg. 1971;20:685–8.
Powell R, Neilan J, Gannon F. Plaque dot assay. Nucleic Acids Res. 1986;14:1541. doi:10.1093/nar/14.3.1541.
Sommer DD, Delcher AL, Salzberg SL, Pop M. Minimus: a fast, lightweight genome assembler. BMC Bioinformatics. 2007;8:64. doi:10.1186/1471-2105-8-64.
Henn MR, Sullivan MB, Stange-Thomann N, Osburne MS, Berlin AM, Kelly L, et al. Analysis of high-throughput sequencing and annotation strategies for phage genomes. PLoS One. 2010;5:e9083. doi:10.1371/journal.pone.0009083.
Bjellqvist B, Hughes GJ, Pasquali C, Paquet N, Ravier F, Sanchez JC, et al. The focusing positions of polypeptides in immobilized pH gradients can be predicted from their amino acid sequences. Electrophor. 1993;14:1023–31. doi:10.1002/elps.11501401163.
Klucar L, Stano M, Hajduk M. phiSITE: database of gene regulation in bacteriophages. Nucleic Acids Res. 2010;38:D366–70. doi:10.1093/nar/gkp911.
Mitra A, Kesarwani AK, Pal D, Nagaraja V, WebGe S. Ter DB-a transcription terminator database. Nucleic Acids Res. 2011;19:1–7.
Larkin MA, Blackshields G, Brown NP, Chenna R, McGettigan PA, McWilliam H, et al. Clustal W and Clustal X version 2.0. Bioinformatics. 2007;23:2947–8. doi:10.1093/bioinformatics/btm404. PubMed: 17846036.
Tamura K, Stecher G, Peterson D, Filipski A, Kumar S. MEGA6: molecular evolutionary genetics analysis version 6.0. Mol Biol Evol. 2013;30:2725–9. doi:10.1093/molbev/mst197.
Boulanger P. Purification of bacteriophages and SDS-PAGE analysis of phage structural proteins from ghost particles. Methods Mol Biol. 2009;502:227–38. doi:10.1007/978-1-60327-565-1_13.
Wang D, Wang M, Li Y, Dong H, Liu Z, Liu Y, et al. Complete genome sequence and analysis of Vibrio cholerae phage VP2. Bing Xue Bao [Chinese J Virol. 2005;21:60–4.
Hantula J, Kurki A, Vuoriranta P, Bamford DH. Ecology of bacteriophages infecting activated sludge bacteria. Appl Environ Microbiol. 1991;57:2147–51.
Ackermann HW. Tailed bacteriophages: the order caudovirales. Adv Virus Res. 1998;51:135–201. doi:10.1016/S0065-3527(08)60785-X.
Casjens SR, Gilcrease EB. Determining DNA packaging strategy by analysis of the termini of the chromosomes in tailed-bacteriophage virions. Methods Mol Biol. 2009;502:91–111. doi:10.1007/978-1-60327-565-1_7.
Lavigne R, Seto D, Mahadevan P, Ackermann HW, Kropinski AM. Unifying classical and molecular taxonomic classification: analysis of the Podoviridae using BLASTp-based tools. Res Microbiol. 2008;159:406–14. doi:10.1016/j.resmic.2008.03.005.
Casjens SR, Gilcrease EB, Winn-Stapley DA, Schicklmaier P, Schmieger H, Pedulla ML, et al. The generalized transducing Salmonella bacteriophage ES18: complete genome sequence and DNA packaging strategy. J Bacteriol. 2005;187:1091–104. doi:10.1128/JB.187.3.1091-1104.2005.
Carrascosa JL, Viñuela E, García N, Santisteban A. Structure of the head-tail connector of bacteriophage phi. J Mol Biol. 1982;29:311–24.
Berget PB, Poteete AR. Structure and functions of the bacteriophage P22 tail protein. J Virol. 1980;34:234–43.
Fraser JS, Yu Z, Maxwell KL, Davidson AR. Ig-like domains on bacteriophages: A tale of promiscuity and deceit. J Mol Biol. 2006;359:496–507. doi:10.1016/j.jmb.2006.03.043.
Fraser JS, Maxwell KL, Davidson AR. Immunoglobulin-like domains on bacteriophage: weapons of modest damage? Curr Opin Microbiol. 2007;10:382–7. doi:10.1016/j.mib.2007.05.018.
Barr JJ, Auro R, Furlan M, Whiteson KL, Erb ML, Pogliano J, et al. Bacteriophage adhering to mucus provide a non-host-derived immunity. Proc Natl Acad Sci U S A. 2013;110:10771–6. doi:10.1073/pnas.1305923110.
García-Doval C, van Raaij MJ. Structure of the receptor-binding carboxy-terminal domain of bacteriophage T7 tail fibers. Proc Natl Acad Sci U S A. 2012;109:9390–5. doi:10.1073/pnas.1119719109.
Hu B, Margolin W, Molineux IJ, Liu J. The bacteriophage T7 virion undergoes extensive structural remodeling during infection. Science. 2013;339:576–9. doi:10.1126/science.1231887.
Copley RR, Russell RB, Ponting CP. Sialidase-like asp-boxes: sequence-similar structures within different protein folds. Protein Sci. 2001;10:285–92. doi:10.1110/ps.31901.
Yan J, Mao J, Xie J. Bacteriophage polysaccharide depolymerases and biomedical applications. BioDrugs. 2014;28:265–74. doi:10.1007/s40259-013-0081-y.
Ryan DP, Owen-Hughes T. Snf2-family proteins: chromatin remodellers for any occasion. Curr Opin Chem Biol. 2011;15:649–56. doi:10.1016/j.cbpa.2011.07.022.
Szczepanska AK, Bidnenko E, Płochocka D, McGovern S, Ehrlich SD, Bardowski J, et al. A distinct single-stranded DNA-binding protein encoded by the Lactococcus lactis bacteriophage bIL67. Virol. 2007;363:104–12. doi:10.1016/j.virol.2007.01.023.
Franklin MC, Wang J, Steitz TA. Structure of the replicating complex of a pol alpha family DNA polymerase. Cell. 2001;105:657–67. doi:10.1016/S0092-8674(01)00367-1.
Halgasova N, Mesarosova I, Bukovska G. Identification of a bifunctional primase-polymerase domain of corynephage BFK20 replication protein gp43. Virus Res. 2012;163:454–60. doi:10.1016/j.virusres.2011.11.005.
Iyer LM, Koonin EV, Leipe DD, Aravind L. Origin and evolution of the archaeo-eukaryotic primase superfamily and related palm-domain proteins: structural insights and new members. Nucleic Acids Res. 2005;33:3875–96. doi:10.1093/nar/gki702.
Thompson LR, Zeng Q, Kelly L, Huang KH, Singer AU, Stubbe J, et al. Phage auxiliary metabolic genes and the redirection of cyanobacterial host carbon metabolism. Proc Natl Acad Sci U S A. 2011;108:E757–64. doi:10.1073/pnas.1102164108.
Aravind L, Koonin EV. The HD domain defines a new superfamily of metal-dependent phosphohydrolases. Trends Biochem Sci. 1998;23:469–72. doi:10.1016/S0968-0004(98)01293-6.
Wiesmüller L, Wittbrodt J, Noegel AA, Schleicher M. Purification and cDNA-derived sequence of adenylosuccinate synthetase from Dictyostelium discoideum. J Biol Chem. 1991;266:2480–5.
Catalão MJ, Gil F, Moniz-Pereira J, São-José C, Pimentel M. Diversity in bacterial lysis systems: bacteriophages show the way. FEMS Microbiol Rev. 2013;37:554–71. doi:10.1111/1574-6976.12006.
Sullivan MJ, Petty NK, Beatson SA. Easyfig: a genome comparison visualizer. BioInformatics. 2011;27:1009–10. doi:10.1093/bioinformatics/btr039.
Guillermo Alejandro Solís Sánchez appreciates Doctorado en Ciencias Biomédicas-Universidad Nacional Autónoma de México, Facultad de Medicina, and Consejo Nacional de Ciencia y Tecnología (CONACyT) for Fellowship Program support (204332). We thank Dr. Edgar Oliver and M. en C. Esther Sánchez Espíndola from Escuela Nacional de Ciencias Biológicas-IPN, and Dr. Fernando García Hernández from Unidad de Imagenología Instituto de Fisiología Celular, UNAM, for their technical assistance for this work.
The authors declare that they have no competing interests.
ASS and CEC conceived the study and designed the experiments. ASS performed the experiments and analyzed the data. UHU performed the data analysis. ANO performed the bacterial identification by biochemical and serological test. FMJ performed transmission electron microscopy experiments. ASS, CEC, and JXC, wrote the manuscript. CEC and JXC revised the manuscript. All authors read and approved the final manuscript.
