Open Access

Functional analysis of the interferon-stimulated response element of porcine circovirus type 2 and its role during viral replication in vitro and in vivo

  • Jinyan Gu1,
  • Yu Zhang1,
  • Xue Lian1,
  • Hailiang Sun1,
  • Jingman Wang1,
  • Weiting Liu1,
  • Gang Meng1,
  • Peng Li1,
  • Dan Zhu1,
  • Yuexin Jin1 and
  • Ruibing Cao1Email author
Virology Journal20129:152

DOI: 10.1186/1743-422X-9-152

Received: 6 November 2011

Accepted: 27 July 2012

Published: 7 August 2012

Abstract

Background

Porcine circovirus type 2 (PCV2) is associated with post-weaning multi-systemic wasting syndrome (PMWS) in young weaned pigs. Immune stimulation was found to activate the replication of PCV2 and exacerbate the clinical outcome of the infection. Proper amount of interferon-α (IFN-α) is able to enhance PCV2 infection and production in Porcine kidney-15 (PK-15) cells when administered after inoculation.

Methods

In the present study, luciferase reporter assays, construction of mutant viruses, Analysis the replication efficiency and the response to IFN-α treatment in PK-15 cells and animal experiments were carried out to analyze the function of interferon-stimulated response element (ISRE) of PCV2 and its role during viral replication in vitro and in vivo.

Results

A functional viral ISRE sequence, 5′-CTGAAAACGAAAGA-3′, was identified in Rep gene promoter (Prep) of PCV2. PCV2 Prep is composed of two mini promoters, the proximal one span the sequence +1 to -106, containing an ISRE while the distal mini promoter is composed of three tandem GC box like sites locate at -85 to -194. It was demonstrated that viral ISRE is necessary for porcine IFN-α initiated luciferase expression enhancement and it plays an important role in affecting the replication efficiency of PCV2 in vivo and in vitro.

Conclusions

These findings provide a theoretical basis for the Phenomenon of immunostimulation is able to enhance PCV2 infection, and improve the understanding of the complicated mechanisms involved in the host and pathogen interactions of PCV2.

Keywords

PCV2 Prep ISRE IFN-α Replication Regulation

Background

PCV2 was identified as an essential causative agent of post-weaning multi-system wasting-syndrome (PMWS) [1]. PMWS has been observed in virtually all regions of the world involved in intensive pig production. The disease most commonly affects pigs between the ages of 5–18 weeks, clinical signs include a marked increase in the mortality rate, wasting, generalized enlargement of lymph nodes, respiratory signs, and occasionally pallor, jaundice and diarrhea [2].

The PCV2 is a small single circular ambisense DNA virus whose replication occurs in the nuclei of infected cells. With its limited number of viral proteins, PCV2 is not well equipped to modify the intracellular conditions in favor of its own needs for replication, However, relatively simple viruses, such as PCV2, might profit from specific conditions in the host that have been induced by other infectious agents [3].

It is generally believed that immunostimulation either by vaccination or secondary viral infection plays a role in the occurrence of PMWS [47]. However, the exact role of immunostimulation in the progression to clinical PMWS is still unknown.

Previous study showed that type I and type II interferons (IFNs) are able to enhance PCV2 infection and production in PK-15 and 3D4/31 cells. Porcine IFN-α enhance PCV2 infection by 529% in PK-15 cells and by 308% in 3D4/31 cells when it was added after inoculation [3]. It is a very important finding in understanding the interaction of circoviruses with their host cells and also in view of the pathogenesis and reproduction of PMWS in PCV2-infected pigs.

After binding to its host cell receptor, Type I IFN (IFN-a and IFN-β) induces the formation of a heterotrimetric transcription factor complex, interferon-stimulated gene factor 3 (ISGF3), which consists of signal transducers and activators of transcription 1 and 2 (STAT1 and STAT2) and p48 (IRF-9). ISGF3 translocates into the nucleus and binds to the ISRE in the promoter of a variety of interferon-inducible genes, and transactivates their expression [8]. Interferon regulatory factors (IRF) are another important factor induced by type I and II IFNs. Since the sequence of IRF binding site termed IRF-E overlaps with ISRE, IRF also binds to ISRE sequence and activates the interferon-inducible gene transcription, but in part, functionally different [9].

Previous studies have demonstrated the presence of ISRE like sequence in several viral genomes, such as the Epstein-Barr virus [10, 11], the bovine leukemia virus [12], the human immunodeficiency virus type 1 [13] and the hepatitis B virus [14].It was shown that the PCV1 Prep contains an ISRE (nts. 742–753), indicating putative regulation by cytokines [15]. PCV2 also contains an ISRE like sequence 5′-CTGAAAACGAAAGA-3′ in the PCV2 Rep promoter region plays a role in PCV2’s response to IFN, But the biological function is altered when the ISRE sequence is removed from the context of the whole viral genome [16].

In the present study, luciferase reporter assay and nucleotide substitution mutagenesis were conducted to investigate whether the ISRE sequence in the PCV2 Rep promoter region is a functional element in and out of the genome and whether ISRE Mutation affects replication efficiency in vivo and in vitro. The results demonstrated that PCV2 ISRE sequence not only plays a role in the whole viral genome in vivo and in vitro but also work only in the Rep promoter, even individual. These findings are somewhat different from S. Ramamoorthy’s [16].

Results

The PCV2 ISRE sequence demonstrates biological function individually

There is a ISRE like sequence 5′-CTGAAAACGAAAGA-3′ locates at nt 1737–1751 in the PCV2 Rep promoter which is similar to the ISRE sequence in interferon-inducible gene promoters (Table 1). To determine whether the ISRE sequence in PCV2 Rep promoter is individual response to IFN-α treatment, the synthetic multiple viral ISRE was examined in the context of an enhancer test vector pGL-miniP. pGL-miniP was constructed by substituted the SV40 promoter of pGL3-Promoter with HSV-1 TATA-like promoter (PTAL). The level of luciferase transcription from the construct pGm-PCV2-ISRE(3) which contains three copies of the PCV2 ISRE sequence, increased 4-fold compared to pGL-miniP and 10-fold in the presence of 100U/mL porcine IFN-α treatment. Mutation of the viral ISRE sequence in the construct pGm-PCV2-ISRE mut(3) completely inhibited enhancement of transcription and IFN-α treatment also failed to greatly modulated transcription (Figure 1). Enhancement of transcription by porcine IFN-α treatment demonstrates that the ISRE like sequence in PCV2 Rep promoter region can act as an interferon-stimulated response element individually.
Table 1

Sequence similarity between ISRE sequence in the interferon inducible gene promoters and ISRE-like sequence in virus promoter

Gene

Sequence

Ref.

Mx1 (porcine)

GGGAAA CGAAA CT

Tungtrakoolsub, 2007

Mx2 (porcine)

AGGAAA TGAAA CT

Tungtrakoolsub, 2007

GPB (porcine)

ATGAAA CTGAAA GC

Ma, 2008

HIV-1 LTR

TTGAAA GCGAAA GGGAAA CC

Battistini,2002

HBV enhancer-1

GAGAAA GTGAAA GC

Alcantara, 2002

EBV Qp

GCGAAA ACGAAA GT

Zhang, 1997

PCV2 Prep

CTGAAA ACGAAA GA

-

https://static-content.springer.com/image/art%3A10.1186%2F1743-422X-9-152/MediaObjects/12985_2011_Article_1829_Fig1_HTML.jpg
Figure 1

Function analysis of the PCV2 ISRE in the context of an enhancer test vector. The pGm-PCV2-ISRE(3), pGm-PCV2-ISREm(3) and pGm-GPB-ISRE(3) constructs contain the PCV2 ISRE, mutant PCV2 ISRE and GBP2 promoter ISRE double-stranded oligonucleotides cloned into the minimal promoter construct pGL-miniP, respectively. The number of copies of the oligonucleotide in the constructs is shown in parenthese in the construct name. Luciferase activity was measured in extracts of transfected cells treated with porcine IFN-α, and compared with untreated cells. pRL-TK was included in every transfection mixture to control for variations in transfection efficiencies. The level of Renila luciferase in each sample was used to normalize firefly luciferase activity. The final concentration of porcine IFN-α was 100 U/mL. Experiments were carried out independently at least 3 times and the results are expressed as means ± SD.

The pGm-GBP-ISRE(3) constructs was proved to have similar, but somewhat greater, responsiveness to porcine IFN-α treatment, confirming that the PCV2 Rep promoter ISRE sequence can act as an interferon-stimulated response element in a manner similar to previously characterized ISRE-containing promoter [17].

Characterization of the ISRE containing Rep gene promoter

Promoter Prep overlaps the intergenic region and the origin of replication. Sequence analysis showed that PCV2 Rep promoter does not contain any recognizable TATA or CAAT elements. However, it contains several elements that may influence its activity. Two AP1 boxes (nt −252 to −255 and −267 to −280), one AP2 site (nt −227 to −222) and four SP1 sites (nt −122 to −127, −158 to −163, −178 to −183, and −233 to −238), are located upstream of the ISRE (nt −67 to −81).

To character the Prep, fragments containing the putative promoters were cloned into plasmid pGL3-basic in front of a promoterless luc gene. We assumed that Prep was located immediately upstream of the Rep translation start position at nt 51. The resultant pGL-355 plasmids were investigated for promoter activity using the Dual-Luc assay. Compared with the late SV40 promoter in plasmid pGL3-promter, Prep activity on the initial fragment was strong. Consequently, the fragment containing nt −354 to +1 was truncated from the 5′ end. The highest activity was observed with plasmid pGL-194 (nt −193 to −1). A substantial decrease in Luc activity was obtained when the 5′ end of the fragment carrying nt −193 to −1 was further truncated to nt -105, indicating that the three SP1 sites before ISRE of Prep must be important for the complete activity of Prep. Interestingly, the pGL-108 fragment carrying nt −193 to −85 also shows transcription activity, even it was lower compared to pGL-194 or pGL-106 (Figure 2).
https://static-content.springer.com/image/art%3A10.1186%2F1743-422X-9-152/MediaObjects/12985_2011_Article_1829_Fig2_HTML.jpg

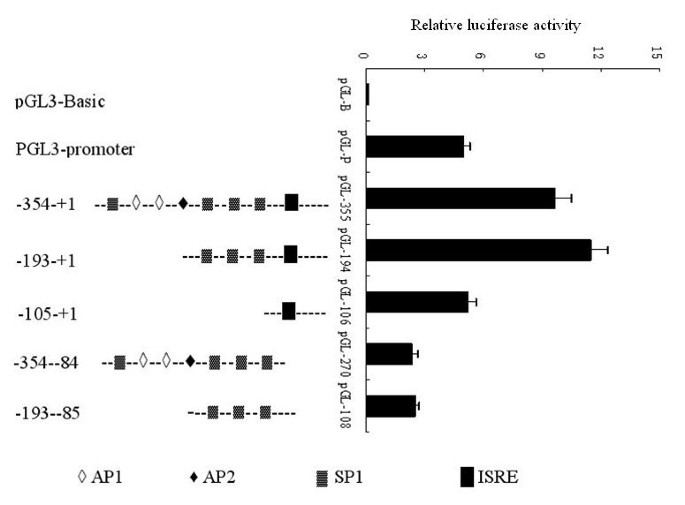

Figure 2

Promoter activities of porcine Rep gene with partial deleted constructs. The schema on the left shows a representation of the partial deleted constructs of porcine Rep promoters, and that on the right shows the promoter activities assayed in PK-15 cells. Experiments were carried out independently at least 3 times and the results are expressed as means ± SD.

From the promoter activity assay we found that the promoter containing three tandem sp-1 sites and the ISRE sequence with highest activity. Prep is composed of two independent mini promoters, the proximal one containing the ISRE sequence spans the sequence +1 to −106, while the distal mini promoter is composed of three sp-1 sites.

The ISRE is essential for porcine IFN-α induced Rep promoter enhancement

To test whether Rep promoter can be activated upon porcine IFN-α treatment, the luciferase reporter plasmids pGL-194, pGL-108 and pGL-106 were transfected into PK-15 cells, and the expression of luciferase, after porcine IFN-α treatment, was measured. As shown in Figure 3, The transcription activity of pGL-194 and pGL-106 increased by 135% and 220% respectively in the presence of 100 U/mL porcine IFN-α. However, pGL-108 which contains no ISRE, transcription activity decreased by 25% in the transfected cells treated with porcine IFN-α. To determine whether viral ISRE is necessary for porcine IFN-α initiated luciferase expression enhancement. The plasmids designated pGL-194 m and pGL-106 m were constructed by replacing the viral ISRE sequence 5′-CTGAAAACGAAAGA-3′ with the mutant sequence 5′-CTcAAtACcAAAGA-3′. When the two plasmids were transfected into PK-15 cells, porcine IFN-α no longer were able to enhance luciferase reporter gene transcription. This result strongly suggests that the viral ISRE is essential for IFN-α-initiated enhancement of PCV2 Rep promoter. However, mutation of the ISRE site decreased Rep promoter basal activity eight to ten fold. The Luc activity obtained with the mutated ISRE Rep promoter was even lower than that obtained after deletion of the complete ISRE region, suggesting that the transcription activity of tandem SP-1 elements in Rep promoter may be affected by the ISRE.
https://static-content.springer.com/image/art%3A10.1186%2F1743-422X-9-152/MediaObjects/12985_2011_Article_1829_Fig3_HTML.jpg
Figure 3

Response character of different constructs of porcine Rep promoter to IFN-α treatment. The figure shows the transcription activities of serials constructs assayed in PK-15 cells with or without induction of 100 U/mL IFN-α. The transcription activity of PGL-106 increased significantly in the presence of IFN-α. Experiments were carried out independently at least 3 times and the results are expressed as means ± SD.

ISRE Mutation affects replication efficiency and IFN-α response of PCV2 in PK-15 cells

To determine if there is a relationship between ISRE mutation and sensitivity of PCV2 to IFN-α in vitro, ISRE mutations were introduced by site-directed mutagenesis and the genomes of wild-type and mutant PCV2 were transiently transferred into PK-15 cells by transfast transfection. Both the wild-type PCV2 genome and the ISRE mutant PCV2 genome produced infectious progeny PCV2 as identified by IPMA. After three cell passages and confirmation by immunochemical staining virus infected cell DNAs were isolated and amplified by PCR with PCV2-specific primers PCV2 F3 and PCV2 R2. After Gel purification each PCR product was sequenced. The result showed that the engineered mutation was retained in the progeny viruses. The two recovered PCV2 were both genetically stability during 3 passages in PK-15 cells.

In contrast to wildtype PCV2, the ISRE mutant exhibited weaker replication efficiency. The virus titer of wildtype PCV2 and the mutant PCV2 were about 104.19 TCID50/mL and 103.50TCID50/mL respectively (Figure 4A). After 100 U/mL porcine IFN-α was added, viral antigen positive cells of both the wild-type PCV2 and the ISRE mutant PCV2 increased, up to 210% and 135% respectively (Figure 4B). These data indicate that PCV2 harboring the ISRE mutation has weaker replication efficience and lower sensitivity to IFN-α than wild-type.
https://static-content.springer.com/image/art%3A10.1186%2F1743-422X-9-152/MediaObjects/12985_2011_Article_1829_Fig4_HTML.jpg
Figure 4

A. PCV2 JSDT and PCV2 mut titers in PK-15 cells. Experiments were carried out independently at least 3 times and the results are shown as means ± SD. B. Effects of porcine IFN- α on the number of PCV2 antigen positive PK-15 cells. PK-15 cells were treated with 100 U/mL IFN-α at 1 hours post virus inoculation. The number of PCV2 antigen positive cells in IFN-α treated cells were counted after 36 h incubation and compared with the number of PCV2 antigen positive cells in untreated cells. Experiments were carried out independently at least 3 times and the results are expressed as means ± SD.

PCV2-specific serum antibody responses

The production of PCV2-specific IgG antibodies by each of the animal groups was monitored by PCV2 antibody ELISA kit after inoculation. The final result is expressed as a signal: positive (S:P) ratio. As shown in Figure 5, PCV2 infection induced IgG after 1 week p.i. piglets inoculated with PCV2 JSDT exhibited higher PCV2-specific IgG titers with S:P ratios of 0.42 ± 0.05, 0.69 ± 0.1, and 0.86 ± 0.07 at 2, 3 and 4 weeks p.i., respectively, compared to PCV2 mut titers of 0.21 ± 0.04, 0.35 ± 0.07, and 0.46 ± 0.08 at the same time points, respectively, these differences were statistically significant (P < 0.05). These data clearly showed that the wildtype PCV2 infection elicited a higher antibody response than the ISRE mutant PCV2 infection.
https://static-content.springer.com/image/art%3A10.1186%2F1743-422X-9-152/MediaObjects/12985_2011_Article_1829_Fig5_HTML.jpg
Figure 5

The kinetics of PCV2-specific IgG antibody production at various times p.i. Experiments were carried out independently at least 3 times and the results are shown as means ± SD.

Quantification of PCV2 in serum from infected piglets

To identify whether mutating the ISRE sequence affect viral replication in vivo, the PCV2 genomic copy numbers in serum were quanficated by real-time PCR and the data were presented as the log10 value of PCV2 viral genomic copy numbers. As shown in Figure 6, viral genomic copies peaked at 2 weeks p.i. and the levels of PCV2 JSDT viremia were higher than the levels of PCV2 mut from 1 to 4 weeks p.i. The results demonstrated that the replication efficiency of ISRE mutant PCV2 was lower than the wildtype PCV2’s in vivo.
https://static-content.springer.com/image/art%3A10.1186%2F1743-422X-9-152/MediaObjects/12985_2011_Article_1829_Fig6_HTML.jpg
Figure 6

The viremia of wildtype or ISRE mutant PCV2 infected piglets. Experiments were carried out independently at least 3 times and the results are shown as means ± SD.

Discussion

An ISRE sequence 5′-CTGAAAACGAAAGA-3′ which is precisely conserved among the different gene-types of PCV2 locates at nt 1737–1751 in the PCV2 Rep promoter, Previous study [16] found that when the PCV2 ISRE sequence present in the context of intact virus but not in isolation influences the interferon-mediated enhancement of PCV2 replication in vitro, they also found that mutating the ISRE sequence did not significantly affect viral replication in vitro, but our research demonstrated that PCV2 ISRE sequence is a functional motif in and out of the whole viral genome and it can affect the PCV2 replication in vitro and in vivo.

Porcine IFN-α could enhance the transcription of PCV2 ISRE reporter construct significantly. Even though the absolute lucifease expression of all reporter constructs include pGL3-promoter were significantly decreased in the presence of IFN-α treatment due to systemic inhibition effect of translation by IFN-α on host cell gene (data not shown). The relative lucifease activity (firefly luciferase/Renila luciferase) of the pGm-PCV2-ISRE (3) increased by two fold in the presence of 100 U/mL porcine IFN-α. The findings are somewhat different from the results by S. Ramamoorthy et al [16], they concluded IFN-α or IFN-γ treatments of 3D4/31 cells transfected with the reporter gene constructs carrying the wildtype ISRE sequence did not increase the reporter gene expression. It is possible that the cells, vectors and the rep promoter gene fragments we used were different. They used 3D4/31 cells and pGL3-basic vectors, whereas we used PK-15 cells and pGL-mini vectors, the gene fragments they used were relatively intact rep promoter, but what we used were only three copies of ISRE in this part.

The obvious functional experiment was to test whether Rep promoter can be activated upon IFN treatment. However, the full-length Rep promoter reporter construct did not respond to porcine IFN-α treatment significantly. This result might be due to negative regulatory elements in the promoter or the basal level of luciferase activity was high after transfection. For the transfection procedure itself activated interferon expression(data not shown). Interferon deficiency cell line suitable for porcine circovirus is now not available. In order to solve this problem, Rep promoter was further characterized.

Computer-assisted sequence analysis showed that PCV2 Rep promoter does not contain any recognizable TATA or CAAT elements. However, besides a sequence, spanning nt -80 to nt -67 that is homologous to the ISRE present in the promoter of ISGs, there are GC box like sequences at four different sites before Rep gene, which are known to implicate in transcription.

Interestingly, from the promoter activity assay using various promoter constructs, we found that promoter construct lacking GC box at −192 to −84 significantly reduced luciferase activity, suggesting that Rep expression might be partially controlled by a GC box binding protein such as transcription factor Sp-1 [18, 19]. Sp1 is a ubiquitous transcription factor which is responsible for activating many cellular and viral genes. Like PCV2 Rep, many eukaryotic genes with TATA-less promoters contain multiple Sp1-binding motifs arranged in tandem and in close proximity within the proximal promoter [20]. Sp1 can activate many of these promoters synergistically by Sp1–Sp1 interactions and these interactions are an important mechanism for modulating the expression of this class of genes [21].

Further study indicated that Prep is composed of two independent mini promoters, the two mini promoters are both able to initiate the expression of luciferase gene and GFP gene in PK-15 cells (pictures not shown). With the proximal Rep promoter, mutation of the ISRE was shown to abrogate IFN-α mediated up-regulation of PCV2 proximal Rep promoter driven reporter gene expression. This suggested a crucial role of the ISRE in IFN-α induced enhancement transcription. Based on the responsiveness to IFN-α, and the viral ISRE sequence similarity to consensus ISRE, we concluded that Rep promoter has a functional ISRE sequence. With the distal Rep promoter, decreased luciferase transcription was observed in the presence porcine IFN-α treatment. There are three GC box like sequences which predicted to be SP-1 binding site in the computer-assisted scanning. Within the Sp-family transcription factors, Sp-1 and Sp-3 are ubiquitously expressed in mammalian cells. Sp-3 is structurally similar to Sp-1, with similar affinities for the Sp-1-binding site [21]. Previous study suggested different roles for Sp-1 and Sp-3, with Sp-1 being involved in basal transcription and Sp-3 having a role in the interferon inducible transcription of the PKR gene [22]. Whether GC box like sequence is the binding site of Sp-1 or Sp-3 and contribute to the regulation of Rep promoter has yet to be determined.

The luciferase transcription activity of the full-length Rep promoter is higher than the value of distal Rep promoter with proximal Rep promoter, so we conclude the two mini-promoters have a synergistic effect. However, luciferase transcription activity of the ISRE mutant full-length Rep promoter is even lower than the distal Rep promoter, indicating the PCV2 ISRE sequence plays an important role in the activity of Rep promoter.

PCV2 Rep gene promoter is known to support the synthesis of Rep and Rep’, Rep’ is truncated, and the C terminus is expressed in a different reading frame. Two products of the Rep gene are indispensable for PCV replication [23]. The Rep-complex recognizes and binds the direct H tandem repeats and the right-arm of the palindrome destabilizes and unwinds the Ori sequence, and then nicks the octanucleotide sequence between T6 and A7 to generate a free 3′-OH end for initiation of plus-strand DNA replication [24]. Besides its role in replication, the Rep protein is a transcriptional repressor of Rep gene expression. Previous study indicated that the full-length Rep protein could repression the Prep by binding to the two inner hexamers, H1 and H2, located in the origin of PCV1 [25]. So the transcriptional activity of Prep is controlled by both viral and cellular factors. Since the Rep and Rep’ are essential for PCV DNA replication, their expression regulation is expected to affect progeny virus production.

The results of viral mutational analysis in vitro demonstrated that the ISRE is non-essential for virus replication, for the progeny PCV2mut with function abrogated ISRE was readily recovered from cultures transfected with the excised and recircularized double-stranded mutant genomes. However, PCV2mut decreased replication competence and lower sensitivity to IFN-α were observed demonstrated a significant role of ISRE in the viral replication efficiency and regulation of IFN-α-mediated PCV2 replication on PK-15 cells.

The data of animal experiments showed that the mutation of PCV2 ISRE sequence not only affect the replication efficiency in PK-15 cells, but also had negative effects in vivo, the ISRE mutant PCV2 infection elicited a lower antibody response and replication efficiency than the wild type PCV2 infection. Therefore, we conclude that the PCV2 ISRE is an important motif in the viral transcription start in vivo and in vitro.

The interaction of viral ISRE located in the Rep promoter of PCV2 with host cell transcription factor regulated by IFN may be anther underlying mechanism for enhanced virus production. Previous study has reported that up-regulation of PCV2 in PK-15 cells by IFN-γ is due to enhanced internalizing of viral particles [3]. Besides ISGF3, IRFs are another important factor induced by type I and II IFNs. Since the sequence of IRF binding site termed IRF-E overlaps with ISRE, IRF also binds to ISRE sequence and activates the interferon-inducible gene transcription, but in part, functionally different [9]. So which transcription factor binds the PCV2 ISRE? Further research should clarify this issue.

Conclusions

From all of the research results, we conclude that PCV2 ISRE is an unquestionable functional element to IFN response; it also plays an important role in viral transcription start. The findings provide a theoretical basis for the Phenomenon of IFNs are able to enhance PCV2 infection and production in PK-15, they also improve the understanding of interaction of PCV2 with their host cells, the pathogenesis and reproduction of PMWS in PCV2-infected pigs.

Materials and methods

Cell, virus and serum

PK-15 cells free of PCVs were grown at 37°C in a humidified 95% air–5% CO2 atmosphere in minimal essential medium (MEM) (GIBCO-BRL, Grand Island, NY) supplemented with 10% fetal bovine serum, 50 U of penicillin per mL, 50 μg of streptomycin per mL, and 2 mM glutamine. The PCV2 strain JSDT (accession number GQ227412) used in the study was originally isolated from Lymph nodes sample of a pig with naturally occurring PMWS. This virus was propagated in PK-15 cells and confirmed to be PCV2 by PCR analysis and reactivity with specific PCV2 monoclonal antibodies. The hyper-immune swine serum against PCV2 was collected from clinical serum identified by ELISA.

Recombinant porcine interferon alpha

Porcine IFN-α were produced in Pichia Pastoris yeast expression system and the activity were measured using bioassay described previously [26]. The IFN was diluted just before use in MEM supplemented with 10% FBS to the final concentration used in the assay.

Promoter scan

The presence of putative regulatory elements in the promoter sequences was analysed online with Proscan: Version 1.7.

DNA mutagenesis

The complete PCV2 genome was obtained by PCR and was then cloned into pUC18 digested with EcoR I to generate pUC18-PCV2. This plasmid was used as a substrate for the mutagenesis of the ISRE site. A pair of primers namely PCV2mF and PCV2mR (Table 2) were designed. The genome mutation was accomplished by using the QuikChange Site-Directed Mutagenesis Kit (Stratagene), according to the manufacturer’s instructions. The mutation product was verified by gene sequencing.
Table 2

Oligonucleotide primers used in this study

Primer

Primer sequence

Application

PCV2 F1

5′-GCGAATTCAACCTTAACCTTTCTTATTC-3′

PCV2 genome clone

PCV2 R1

5′-ATGAATTCTGGCCCTGCTCCC-3′

PCV2 mF

5′-CAGCGCACTTCTTTg GTa TTg AGATATGACG-3′

ISRE mutation

PCV2 mR

5′-CGTCATATCTc AAt ACc AAAGAAGTGCGCTG-3′

PCV2 F2

5′-CATGGTACCAGAGCGGGGGTTTGA-3′

pGL-355 construction

PCV2 R2

5′-GCTAAGCTTGTTGCTGCTGAGGT-3′

PCV2 F2

5′-CATGGTACCAGAGCGGGGGTTTGA-3′

pGL-270 construction

PCV2 R3

5′-CAGAAGCTTTGACGTATCCAAGAAGGC -3′

PCV2 F3

5′-CCTTCTCCAGCGGTACCGGT-3′

pGL-194 and pGL-194 m construction

PCV2 R2

5′-GCTAAGCTTGTTGCTGCTGAGGT-3′

PCV2 F3

5′-CCTTCTCCAGCGGTACCGGT-3′

pGL-108 construction

PCV2 R3

5′-CAGAAGCTTTGACGTATCCAAGAAGGC -3′

PCV2 F4

5′-CATGGTACCAACGCCTTCTTGGAT-3′

pGL-106 and pGL-106 m construction

PCV2 R2

5′-GCTAAGCTTGTTGCTGCTGAGGT-3′

Mutated nucleotides in the PCV2 ISRE are indicated in lower bald case.

Plasmid construction

The enhancer test vector pGL-miniP was constructed by substituted the SV40 promoter of pGL3-Promoter with HSV-1 TATA-like promoter (PTAL). pGm-PCV2-ISRE(3) and pGm-PCV2-ISREmut(3) were made by inserting three copies of PCV2-ISRE and PCV2-ISREmut double oligonucleotides into the unique Xho I site of pGL-miniP. The oligonucleotide pairs used to generate the PCV2-ISRE and PCV2-ISREmut double oligonucleotides were TCGAGCTGAAAACGAAAGAAGTGC, TCGAGCACTTCTTTCGTTTTCAGC (oligo PCV2-ISRE, PCV2 nucleotide coordinates 1736–1757) and TCGAGCTcAAtACcAAAGAAGTGC, TCGAGCACTTCTTTgGTaTTgAGC (oligo PCV2-ISREmut, mutated nucleotides in the PCV2 ISRE are indicated in lower case), respectively.

To character the PCV2 Rep gene promoter, the following plasmids were used in this study. DNA fragments for cloning were PCR-generated with PCV2 JSDT as the template and the primers used were listed in Table 1. pGL serial plasmids carry fragments of the putative Prep promoter. Plasmid pGL-355 carries the PCR-derived and Kpn I/Hind III tagged fragment nt −354 to +1 of PCV2 Rep gene cloned into the Kpn I/Hind III restricted vector pGL3-basic. pGL-194 carries the fragment nt −193 to +1; pGL-270 nt −354 to -84; pGL-108 nt −192 to −84; pGL-106 nt −105 to +1. To introduce the ISRE mutations in a luciferase reporter system, PCR was used to amplify the promoter region from the mutant viral genome described above. While pGL-194 m and pGL-106 m carry the PCR-derived fragments from ISRE mutated PCV2 genome respectively. All plasmids have been sequenced to exclude PCR acquired mis-incorporation of nucleotides. Plasmid pGL3-control was used as a positive control and plasmid pGL3-basic as a negative control (Promega).

luciferase reporter assays

PK-15 cells grown overnight in 24-well plates were transfected 1 μg of reporter plasmids and 0.25 μg of Renilla luciferase plasmid (pRL-TK [Promega]) with Transfast reagent (Promega). At 36 h post-transfection, the cells were harvested and washed twice with phosphate-buffered saline, and luciferase enzyme activity was measured by using the dual-luciferase assay system (Promega). For these assays which detected the response to IFN-α, the transfection mixture was removed and replaced with media containing 100U/mL porcine IFN-α at 12 h post-transfection. Relative luciferase activity was normalized to the activity of Renilla luciferase used as an internal control. Representative data of three experiments done in triplicate are shown.

Transfection of PCV2 genomes and identification of progeny virus

After the viral genomes were excised from pUC18-PCV2 or pUC18-PCV2m and re-circularized by T4 DNA ligase, the ligated DNA mixture (2 μg) was used to transfect 60 to 80% confluent monolayers of PK-15 cells which had been seeded into 24-well tissue culture plates 24 h later using Transfast reagent (Promega). After transfection at 37°C for 72 h, the transfected cell cultures were frozen and thawed thrice to make a virus stock. The viability of the wildtype virus and the mutant virus stocks were subsequently determined by infecting PK-15 cell monolayers with a 1:10 serial dilution of the two virus stocks and were detected by the method of immunoperoxidase monolayer assay (IPMA) which is described elsewhere [27]. At the meantime, to identify genetic stability of the wildtype virus and the mutant virus stocks, the progeny virus was passaged in PK-15 cells for three times, the Rep promoter region of 3th progeny virus was amplified using preimers PCV2 F3 and PCV2 R2, the PCR products were then gene sequenced. The 3th progeny wildtype virus PCV2 JSDT and the mutant virus PCV2 mut were used to analysis the replication efficiency and the response to IFN-α treatment in PK-15 cells.

Analysis the replication efficiency and the response to IFN-α treatment in PK-15 cells

To compare the replication efficiency of the wildtype virus PCV2 JSDT and the mutant virus PCV2mut, the two viruses should be adjusted to the same multiplicity of infection (moi) of 1 to infect the 60 to 80% confluent monolayers of PK-15 cells which had been seeded into 6-well tissue culture plates containing 1 × 109 cells/well, 72 h later, the plates were frozen and thawed thrice and the virus stock was titrated again in PK-15 cells using serial 10-fold dilutions of each sample.

To analysis if PCV2 harboring the ISRE mutation can reduce the sensitivity to IFN-α, the 96-well plate containing 1.5 × 104 cells/well was used in this experiment, PK-15 cells were inoculated when they were 60 to 80% confluent (24 h after seeding). The wildtype virus PCV2 JSDT and the mutant virus PCV2 mut infected PK-15 at the same multiplicity of infection (moi) of 0.5, 1 h after inoculation, the inoculum was replaced with new culture medium and one half of infected cells treated with 100U/mL IFN-α while the other half left untreated. After 36 h incubation, the cells were dried and frozen at -20°C. The plates were stained using an immunoperoxidase monolayer assay (IPMA) and the number of PCV2 antigen-positive cells was counted by light microscopy.

Animal experiment

A total of 24 3-week-old piglets without antibodies against PCV2 were purchased from a herd, all animal procedures were in accordance with the Guidelines for the Care and Use of Animals at Nanjing Agricultural University, The license number is SYXK (苏) 2010–0005. they were randomly divided into three groups (8 piglets per group) that were kept apart in separate isolated rooms. Group 1 piglets were each inoculated with PCV2 JSDT (104.0 TCID50/mL, 3 mL intranasally and 3 mL intramuscularly), Group 2 piglets were each inoculated with PCV2 mut (104.0 TCID50/mL, 3 mL intranasally and 3 mL intramuscularly), Group 3 piglets served as uninfected control, each received corresponding volumes of Dulbecco’s phosphate buffered saline (Invitrogen) (PBS). Serum samples taken for antibody detection and PCV2 genomic copy numbers analisis were collected prior to inoculation and every week for 4 weeks. PCV2-specific IgG antibody were detected using the ELISA kit (JBT) following manufacturer’s instructions. DNAs were extracted from serum samples using the virus DNA extraction kit (Sangon biotech), the extracted DNAs were used for quantification of serum PCV2 genomic DNA copy numbers by real-time PCR as described [28].

Statistical analysis

Results are presented as averages ± standard deviations of the means. Statistical comparisons are made by using Student’s t test, and differences between groups were considered significant if the P value was < 0.05.

Abbreviations

PCV2:

Porcine circovirus type 2

PMWS:

Post-weaning multi-systemic wasting syndrome

IFN-α:

Interferon-α

PK-15:

Porcine kidney-15

ISRE:

Interferon-stimulated response element

Prep Rep

gene promoter

RF:

Replication form

ISGF3:

Interferon-stimulated gene factor 3

STAT1 and STAT2:

Signal transducers and activators of transcription 1 and 2

EBV:

Epstein-Barr virus

moi:

Multiplicity of infection

IPMA:

Immunoperoxidase monolayer assay

PBS:

Phosphate buffered saline.

Declarations

Acknowledgments

This work was supported by grants from National Natural Science Foundation of China (30600018) and A Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).

Authors’ Affiliations

(1)
Key Laboratory of Animal Diseases Diagnostic and Immunology, Ministry of Agriculture, College of Veterinary Medicine, Nanjing Agriculture University

References

  1. Allan GM, McNeilly F, Kennedy S, Daft B, Clarke EG, Ellis JA, Haines DM: Isolation of porcine circovirus-like viruses from pigs with a wasting disease in the USA and Europe. J Vet Diagn Investig 1998, 10: 3-10. 10.1177/104063879801000102View Article
  2. Allan GM, McNeilly F, Ellis J, Krakowka S, Meehan B, McNair I, Walker I, Kennedy S: Experimental infection of colostrum-deprived piglets with porcine circovirus 2 (PCV2) and porcine reproductive and respiratory syndrome virus (PRRSV) potentiates PCV2 replication. Arch Virol 2000, 145: 2421-2429. 10.1007/s007050070031PubMedView Article
  3. Meerts P, Misinzo G, Nauwynck H, et al.: Enhancement of porcine circovirus 2 replication in porcine cell lines by IFN-α before and after treatment and by IFN-α after treatment. J Interferon Cytokine Res 2005, 25: 684-693. 10.1089/jir.2005.25.684PubMedView Article
  4. Gilpin DF, McCullough K, Meeham BM, McNeilly F, McNair I, Stevenson LS, Foster JC, Ellis JA, Krakowka S, Adair BM, Allan GM: In vitro studies on the infection and replication of porcine circovirus type 2 in cells of porcine immune system. Vet Immunol Immunopathol 2003, 94: 149-161. 10.1016/S0165-2427(03)00087-4PubMedView Article
  5. Krakowka S, Ellis JA, McNeilly F, Gilpin D, Meeham B, McCullough K, Allan G: Immunologic features of porcine circovirus type 2 infection. Viral Immunol 2002, 15: 567-582. 10.1089/088282402320914511PubMedView Article
  6. Rovira A, Balasch M, Segales J, Garcia L, Plana-Duran J, Rosell C, Ellerbrok H, Mankertz A, Domingo M: Experimental inoculation of conventional pigs with porcine reproductive and respiratory syndrome virus and porcine circovirus 2. J Viro 2002, 76: 3232-3239. 10.1128/JVI.76.7.3232-3239.2002View Article
  7. Opriessnig T, Fenaux M, Yu S, Evans RB, Cavanaugh D, Gallup JM, Pallares FJ, Thacker EL, Lager KM, Meng XJ, Halbur PG: Effect of porcine parvovirus vaccination on the development of PMWS in segregated early weaned pigs coinfected with type 2 porcine circovirus and porcine parvovirus. Vet Microbiol 2004, 98: 209-220. 10.1016/j.vetmic.2003.11.006PubMedView Article
  8. Bonjardim CA, Ferreir P, Kroon EG: Interferons: Signaling, antiviral and viral evasion. Immunol Lett 2009, 122: 1-11. 10.1016/j.imlet.2008.11.002PubMedView Article
  9. Paun A, Pitha PM: The IRF family, revisited. Biochimie 2007, 89: 744-753. 10.1016/j.biochi.2007.01.014PubMedPubMed CentralView Article
  10. Zhang L, Pagano JS: IRF-7, a new interferon regulatory factor associated with Epstein-Barr virus latency. Mol Cell Biol 1997,17(10):5748-5757.PubMedPubMed CentralView Article
  11. Nonkwelo C, Ruf IK, Sample J: Interferon-Independent and -Induced Regulation of Epstein Barr Virus EBNA-1 Gene Transcription in Burkitt Lymphoma. J Virol 1997, 71: 6887-6897.PubMedPubMed Central
  12. Kiermer V, Van Lint C, Briclet D, Vanhulle C, Kettmann R, Verdin E, Burny A, Droogmans L: An Interferon Regulatory Factor Binding Site in the U5 Region of the Bovine Leukemia Virus Long Terminal Repeat Stimulates Tax-Independent Gene Expression. J Virol 1998, 72: 5526-5534.PubMedPubMed Central
  13. Van Lint C, Amella CA, Emiliani S, John M, Jie T, Verdin E: Transcription Factor Binding Sites Downstream of the Human Immunodeficiency Virus Type 1 Transcription Start Site Are Important for Virus Infectivity. J Virol 1997, 71: 6113-6127.PubMedPubMed Central
  14. Su H, Yee JK: Regulation of hepatitis B virus gene expression by its two enhancers. Proc Natl Acad Sci USA 1992, 89: 2708-2712. 10.1073/pnas.89.7.2708PubMedPubMed CentralView Article
  15. Mankertz A, Hillenbrand B: Analysis of transcription of Porcine circovirus type 1. J Gen Virol 2002, 83: 2743-2751.PubMedView Article
  16. Ramamoorthy S, Huang FE, Huang YW, Meng XJ: Interferon-mediated enhancement of in vitro replication of porcine circovirus type 2 is influenced by an interferon-stimulated response element in the PCV2 genome. Virus Research 2009, 145: 236-243. 10.1016/j.virusres.2009.07.009PubMedView Article
  17. Ma G, Huang J, Sun N, et al.: Molecular characterization of the porcine GBP1 and GBP2 genes. Mol Immunol 2008, 45: 2797-2807. 10.1016/j.molimm.2008.02.007PubMedView Article
  18. Philipsen S, Suske G: A tale of three fingers: the family of mammalian Sp/XKLF transcription factors. Nucleic Acids Res 1999, 27: 2991-3000. 10.1093/nar/27.15.2991PubMedPubMed CentralView Article
  19. Suske G: The Sp-family of transcription factors. Gene 1999, 238: 291-300. 10.1016/S0378-1119(99)00357-1PubMedView Article
  20. Anderson GM, Freytag SO: Synergistic Activation of a Human Promoter In Vivo by Transcription Factor Spl. Mol Cell Biol 1991,11(4):1935-1943.PubMedPubMed CentralView Article
  21. Li L, He SH, Sun JM, Davie JR: Gene regulation by Sp1 and Sp3. Biochem Cell Biol 2004, 82: 460-471. 10.1139/o04-045PubMedView Article
  22. Ward SV, Samuel CE: The PKR kinase promoter binds both Sp1 and Sp3, but only Sp3 functions as part of the interferon-inducible complex with ISGF-3 proteins. Virology 2003, 313: 553-566. 10.1016/S0042-6822(03)00347-7PubMedView Article
  23. Mankertz A, Hillenbrand B: Replication of Porcine circovirus Type 1 requires two proteins encoded by the viral rep gene. Virology 2001,279(2):429-438. 10.1006/viro.2000.0730PubMedView Article
  24. Mankertz A, Caliskan R, Hattermann K: Molecular biology of Porcine circovirus : analyses of gene expression and viral replication. Vet Microbiol 2004, 98: 81-88. 10.1016/j.vetmic.2003.10.014PubMedView Article
  25. Steinfeldt T, Finsterbusch T, Mankertz A: Rep and Rep’ protein of porcine circovirus type 1 bind to the origin of replication in vitro. Virology 2001, 291: 152-160. 10.1006/viro.2001.1203PubMedView Article
  26. Cao RB, Zhou GD, Zhou HX, et al.: Secreted expression of porcine interferon beta in Pichia pastoris and its inhibition effect on the replication of pseudorabies virus. Acta Microbiologica Sinica 2006,46(3):412-417.PubMed
  27. Cheung AK: The essential and nonessential transcription units for viral protein synthesis and DNA replication of porcine circovirus type 2. Virology 2003, 313: 452-459. 10.1016/S0042-6822(03)00373-8PubMedView Article
  28. Kathleen AM, Anju T, John CSH, Steven K, John AE, Janet EH: Development and validation of a SYBR green real-time PCR for the quantification of porcine circovirus type 2 in serum, buffy coat, feces, and multiple tissues. Vet Microbiol 2009, 133: 23-33. 10.1016/j.vetmic.2008.06.010View Article
