Effect of early anti-retroviral therapy on the pathogenic changes in mucosal tissues of SIV infected rhesus macaques
© Malzahn et al.; licensee BioMed Central Ltd. 2012
Received: 3 May 2012
Accepted: 12 November 2012
Published: 14 November 2012
The gastrointestinal tissue plays an important role in the pathogenesis of HIV/SIV infection and serves as a viral reservoir in infected individuals under antiretroviral therapy (ART). However, the effect of ART administration in the very early stage of infection on HIV/SIV replication and pathogenesis in gastrointestinal tissue has not been fully studied. In this current study, rhesus monkeys infected with SIV were treated with ART starting at day 7 post-infection. The effect of early ART on SIV replication and infection-related pathogenic changes in mucosal tissues of the infected monkeys was examined.
Nuclear acids were extracted from snap frozen ileum and colon tissues and mesentery lymph nodes from SIV infected monkeys with or without ART. SIV RNA and DNA loads as well as levels of CD3, CD4 and cytokine mRNA were measured by PCR and RT PCR from the isolated nuclear acids. Tissue sections were stained by immuno-fluorescence labeled antibodies for CD3 and CD4.
Without ART treatment, these monkeys underwent a mild SIV infection with low viral loads and slightly decreased CD4+ T cell counts in peripheral blood. In ART treated monkeys, SIV RNA loads were undetectable in blood with normal CD4+ T cell counts, however, SIV RNA and DNA were detected in the intestinal tissues and mesentery lymph nodes although the levels were lower than those in untreated monkeys. The levels of CD3 and CD4 positive cells in the tissues were similar between the infected untreated monkeys and infected ART treated monkeys based on RT-PCR and immune-fluorescence staining of the tissue sections. Furthermore, compatible levels of IL-6, TNF-a, IL-1b and MyD88 mRNAs were detected in most of intestinal tissues and mesentery lymph nodes of infected ART treated and infected untreated monkeys.
These results suggest that early ART administration could not effectively inhibit SIV replication in intestinal tissues and mesentery lymph nodes and could not reduce the immune activation induced by SIV infection in the intestinal tissues.
KeywordsSIV Gastrointestinal tissue Immune activation Viral load
The gastrointestinal (GI) tract harbors a majority of lymphocytes both in human and non-human primates. Approximate 40-60% of T lymphocytes in the GI tract are CCR5+ CD4+ T cells, the main target cells for HIV/SIV infection and replication [1–4]. The gut associated lymphoid tissue (GALT) plays an important role in the pathogenesis of HIV infection and AIDS development. During the early and chronic phases of HIV/SIV infection, HIV/SIV preferentially replicates in the GALT, leading to CD4+ T cell depletion, especially Th17 CD4+ T cells, local immune activation and mucosal barrier dysfunction [5, 6]. The pathogenic changes in GI tissue result in microbial and microbial-product translocation and systemic immune activation, which propels disease progression. In long-term non-progressors (LTNP) and antiretroviral therapy (ART) treated patients, the GALT serves as a viral reservoir which poses a great obstacle in virus eradication from HIV infected individuals [1, 7, 8].
In the early stage of HIV/SIV infection, regardless of the route of infection, the virus infects gastrointestinal tissues and quickly establishes a viral reservoir. When HIV infected patients are treated with ART, viral loads in peripheral blood decline quickly to an undetectable level. However, viral DNA and RNA can still be detected in lymphoid and gastrointestinal tissues, indicating that virus actively replicates in these tissues in spite of the ART treatment [9, 10]. However, in most of these studies, infected patients were treated with ART in their chronic phase of infection.
It is still unclear why ART is unable to effectively control and eradicate HIV from the gastrointestinal tissues. It is speculated that ART administration at a very early stage of infection could more effectively control HIV replication in GI compartments in which HIV is just establishing productive infection. Unfortunately, limited studies have been reported about the effect of early ART treatment on HIV infection and pathogenesis in GI tissues. This information is very important for clinicians to design an effective therapeutic strategy. Macaques infected with SIV provide good animal models for studying HIV with different treatment strategies since it is possible to examine host and viral responses to early ART treatment in different tissue compartments at different times post infection.
In this study, GI tissues from SIV infected rhesus monkeys with or without ART administration at very early phase of infection were studied to explore the effectiveness of early ART administration on viral loads and other pathogenic changes in gastrointestinal tissues.
SIV RNA/DNA loads in blood and GI tissues from infected monkeys with or without ART
Infection status and Clinical findings in Rhesus Macaques
Infection stage and treatment
Inoculation strain of SIV
Route of Infection
Plasma viral loads (copies/ml)
CD4 T cells/mm3

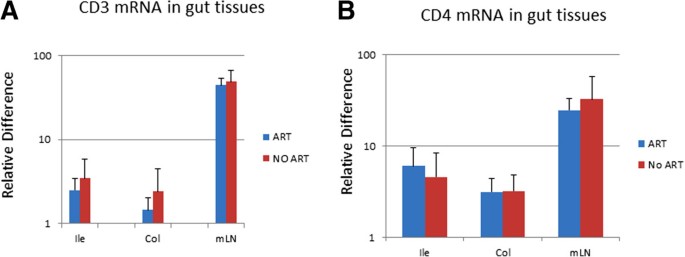

Quantitation of CD3 and CD4 positive cells in intestinal tissues with or without ART

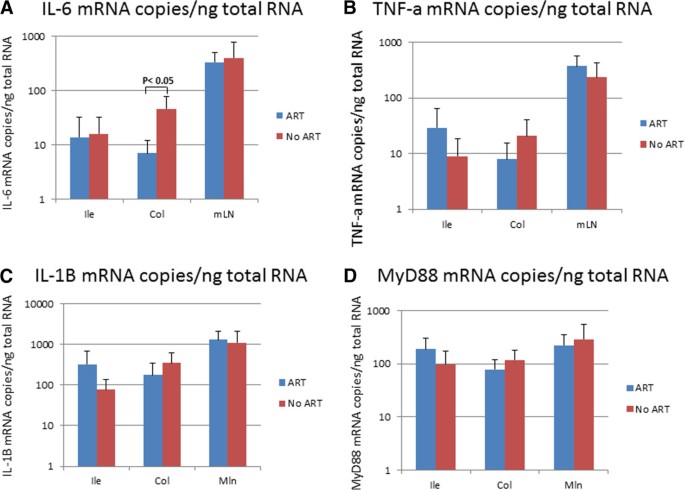

Cytokine profiles in SIV infected intestinal tissues with/without ART
In HIV/SIV infection, pathogenic changes in the GI tract have been implicated as one of the main causes of disease progression and AIDS development. ART treatment of chronically infected patients decreases plasma viral loads to undetectable levels and maintains those levels for many years. However, in such treated patients, HIV remains replication active in gastrointestinal tissues and lymphoid nodes, and as a result it is very difficult to eradicate HIV from infected individuals. It has been speculated that the concentration of ART in gastrointestinal tissue is much lower than that in blood because the gastrointestinal tissue composition and structures lead to poor drug penetration. Such low levels of ART in tissues could not effectively suppress HIV replication in the tissues, making the gastrointestinal tissue a viral reservoir . Recent studies show that ART treatment of HIV-1 infected persons has a very dramatic impact on reducing HIV-1 transmission rates to their partners . Studies in the macaque models have also demonstrated that early drug treatment delayed or reduced the peak of acute viremia, enhanced antiviral immune responses, and delayed disease progression . Therefore, ART has been suggested to be administered at the early stage of HIV infection to inhibit HIV replication and transmission and prevent pathogenic change in gastrointestinal tract [16, 17]. However, due to the hard-to-reach anatomical location, few studies have been performed to monitor the effectiveness of early ART administration on blocking HIV replication and associated pathogenic changes in the gastrointestinal tract, a key area for eradicating HIV infection.
In this current study, five SIV infected monkeys were treated with ART from day 7 post infection to day 35 of infection. Our results showed that SIV replicated in intestinal tissues and mln in spite of the early ART administration. Furthermore, SIV invaded intestinal tissues and established viral reservoirs rapidly and administration of antiviral drugs as early as day 7 post infection could neither efficiently suppress viral replication, nor eliminate the infected cells from this established reservoir. SIV infection in gastrointestinal lymphoid tissues leads to rapid depletion of CD4+ cells in the tissues. In the current study, comparable CD4 and CD3 positive cells in the intestinal tissues measured by immuno-fluorescence staining and their mRNA levels in the ART treated and untreated monkeys suggested that early ART administration failed to prevent CD4+ cell depletion in gastrointestinal tissues. However, it is also possible that all infected monkeys in this experiment underwent a moderate SIV infection and might experience a slight decline of CD4+ cells in intestinal tissues regardless of ART administration. Therefore, it is not expected to observe a significant CD4+ T cell depletion in the gut tissues with such a mild and short duration of SIV infection in these experimental monkeys (Dr. Apetrei, University of Pittsburgh, personal communications).
HIV/SIV replication in gastrointestinal tissues induces immune activation and upregulation of multiple cytokines and chemokines, which stimulate inflammatory response and cell death [18–20]. ART administration reduces these pathogenic damages in gastrointestinal tissues of HIV infected patients and SIV infected monkeys [21, 22]. One important aspect of immune activation is T cell activation with upregulation of MHC class II and CD38 on cell membranes. Since only snap-frozen intestinal tissues from the experimental monkeys were available for this study, immune cells in the tissue were not able to be evaluated by flow cytometry for immune activation status. However, mRNA levels of inflammatory cytokines were measured in the tissues. Except IL-6 mRNA levels in the colons, there were no differences in mRNA levels of cytokines and MyD88 in intestinal tissues and mln from ART treated monkeys versus ART naïve monkeys. The possibilities for the observed discrepancies are: 1) Severe immune activation might not occur in the tested tissues due to the mild infection; 2) ART could not prevent SIV induced cytokine production; 3) there might be a combination of 1) and 2). Due to the tissue availability, the cytokine and chemokine levels in the tissues were only measured at mRNA level in this study. In a subsequent study, we will measure the cytokine and chemokine levels at protein level in the tissues as well.
HIV/SIV infection with different levels of viral loads and different rates of CD4+ T cell decline is observed in an infected population. Most studies have focused on the severe cases of HIV/SIV infection. In this study, we reported mild cases of SIV infection and provided a snapshot of the SIV induced pathogenic changes in intestinal tissues with and without early ART administration, which is less studied, but very important since many people have contracted mild HIV infection with low viral loads and slow CD4+ T cell decline.
There are certain limitations in this study by using the frozen tissues from the experimental monkeys: such as, the immune cells could not be isolated from the frozen tissues for precise numeration of CD4 and CD8 T cells in the tissues by flow cytometer analysis, or numeration of SIV infected CD4 T cells, or accurately measuring SIV RNA/DNA copies/number of CD4 T cells. Hence, future studies with fresh intestinal tissues are warranted. Furthermore, due to the limitation of available monkeys, there were no uninfected control monkeys in this study. Future studies that characterize transcriptional profiles of infected with or without ART and uninfected intestinal tissues will be important to the identification of molecular mechanism of pathogenesis and potential targets for therapeutic intervention.
In this study, the effect of early ART treatment on SIV replication and pathogenic changes in intestinal tissues was evaluated in mild SIV infected monkeys. The results suggest that early ART administration could not effectively inhibit SIV replication in intestinal tissues and mesentery lymph nodes and could not reduce the immune activation induced by SIV infection in the intestinal tissues.
Materials and methods
Monkeys, virus infection and sample collection
This study was carried out in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. The protocol was approved by the Institutional Animal Care and Use Committee at the University of Pittsburgh (Assurance Number A3187-01). Surgeries were performed under anesthesia induced and maintained with keztamine hydrochloride and medetomidine hydrochloride, and all efforts were made to minimize suffering.
The ten Indian-origin rhesus macaques were infected by intravenous inoculation with 100 TCID50 of the pathogenic isolate SIVm251 that had been grown in CEMx174 cells. At day 7 post infection, five monkeys were treated with the Antiretroviral drugs (ART) and five monkeys were untreated as controls. The ART consisted of two reverse transcriptase inhibitors, 9-[2-(phosphonyl-methoxy)propyl] adenine (PMPA) and 29-deoxy-5-fluoro-39-thia-cytidine (FTC). PMPA was administered at 30mg/kg daily from day 7 to day 20 post infection and 20mg/kg daily from day 21 to day 35 by subcutaneous injection; FTC was administered at 30mg/kg daily from day 7 to day 35 post infection via subcutaneous injection. All monkeys were sacrificed on day 35 post infection. CD4+ T cell counts and viral loads were measured in peripheral blood two days before and on the sacrificing day respectively (Figure 1). Mesentery lymph nodes, ileum and colon tissues from these monkeys were snap frozen immediately after sacrifice and used in this current study.
Nucleic acid isolation and RT real time PCR
Two hundred milligrams of each GI tissue was homogenized using the hard tissue disposable probes and TH-01 Homogenizer (OMNI International). The RNA and DNA were isolated simultaneously from the same homogenized tissue mixture using the AllPrep DNA/RNA mini ® kit (Qiagen) according to the manufacturer’s protocol. Twenty nanograms of DNA were used for measuring SIV DNA loads in the tissues. Two hundred nanograms of RNA from the tissues were reversely transcribed with random hexamers by SuperScript II Reverse Transcriptase (Invitrogen) following the protocol provided by the manufacturer. Twenty nanograms of cDNA equivalent were used to quantitate SIV RNA loads and the relative mRNA levels of CD4, CD3 and the inflammatory cytokines by real time PCR. A 25 μl TaqMan® PCR was performed by mixing 20ng of the DNA or cDNA with TaqMan® Universal Mastermix (Applied Biosystems), target specific and 18S primers and probes. The PCR amplification and product detection were performed with a ViiA 7 real time PCR machine (Applied Biosystems). The PCR cycling program consisted of 50 two-step cycles of 15s at 95°C and 60s at 60°C. The nucleic acid from each specimen was amplified in duplicate. A no-template and reverse transcriptase negative controls were included in each PCR run. To accurately quantify the target molecules, endogenous gene 18S was co-amplified using commercially available primers and probe (Applied Biosystems) in each run as a multiplex assay. In the result analysis, the Ct value of a specific target was adjusted by the co-amplified 18S Ct value to compensate the subtle differences in DNA and cDNA inputs between samples. For quantitation of SIV loads in gastrointestinal tissue samples, the serial dilutions of SIV 17E virus stock with known copy number were included in each PCR run to generate a standard curve. SIV loads in the samples were quantitated using the following primers and probe , which targeted SIV long terminal repeat (LTR): LTR forward primer - 5’ TGG GAG GTT CTC TCC AGC AC, LTR reverse primer-5’ AAT GGC AGC TTT ATT GAA GAG G and LTR probe- 6FAM 5’ TTC CCT GCT AGA CTC TCA CCA GCA CTT GG TAMRA. To compare the mRNA levels detected in the tissues, a series of three or four times ten-fold dilutions of the samples containing high mRNA levels of CD4, CD3 or inflammatory cytokines were included in each PCR run to generate an arbitrary standard curve for relative quantification of the CD4, CD3 or cytokines in tissue samples. The cytokine primers and probes used for relative quantification were purchased from ABI: CD3—RH02826503; CD4—Rh02621720; IL-6— Rh02789322_m1; TNF-a— Rh02789783_m1; IL-1B— Rh02789775_m1 and MyD88— Rh01573837_m1.
Immunofluorescence staining and quantitative image analysis
The immunofluorescence staining was performed by incubating tissue sections with either mouse anti-human CD4 (Leica Microsystem) Abs at a 1:20 dilution or Rabbit anti-human CD3 (Dako Cytomation) Abs at a 1:50 dilution, subsequently incubated with Cy3-conjugated secondary Abs respectively. Following nuclear staining with Hoechst (Sigma-Aldrich), sections were mounted with Vectashield mounting medium (Vector Laboratories). Laser scanning confocal microscopy was performed with an Olympus (Tokyo, Japan) FluoView 1000 laser confocal microscope.
Student’s T-Test was used to compare the means of SIV loads and relative mRNA quantity of inflammatory cytokines in the GI tissues from monkeys with or without ART. A two-sided alpha value of 0.05 was set for statistical significance.
We would like to thank Dr. Todd Reinhart for his technical support. This work was supported by an R01 grant with grant number R01AI071777 from the National Institute of Allergy and Infectious Diseases (Simon Barratt-Boyes).
